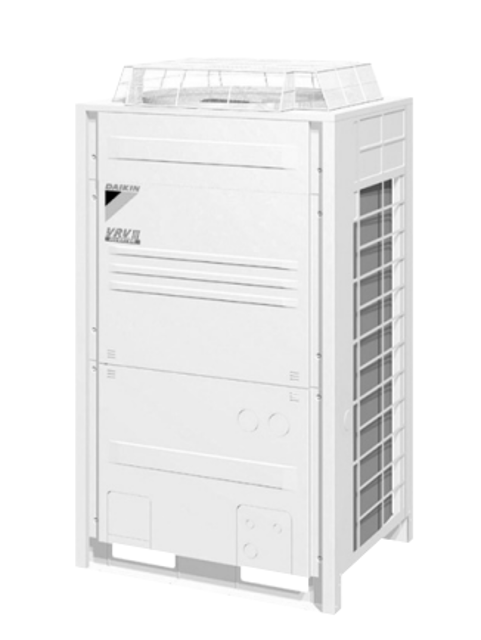

Daikin VRV III Air Conditioner REMQ72PBTJ

Make sure the following works are completed in accordance with the installation manual.

Check that all work for the indoor unit are finished and there are no danger to operate.

Make sure the indoor and outdoor units are operating normally.

Operate each indoor unit one by one and make sure the corresponding outdoor unit is also operating.

Check to see if cold (or hot) air is coming out from the indoor unit.

Push the fan direction and strength buttons on the remote controller to see if they operate properly.

CHECKING OF DEVICE AND INSTALLATION CONDITIONS:

Be sure to check the followings.

For those doing electrical work

1. Make sure there is no faulty transmission wiring or loosing of a nut.

See “7-4 Transmission Wiring Connection Procedure”.

2. Make sure there is no faulty power wiring or loosing of a nut.

See “7-5 Power Wiring Connection Procedure”.

3. Has the insulation of the main power circuit deteriorated?

Measure the insulation and check the insulation is above regular value in accordance with relevant local and national regulations.

Package checked for damage at delivery

Unit handled with care and kept upright

Forklift used correctly (if applicable)

Unit hanged correctly (if applicable)

Sling used is sufficiently strong

2 belts of at least 27 ft long used
