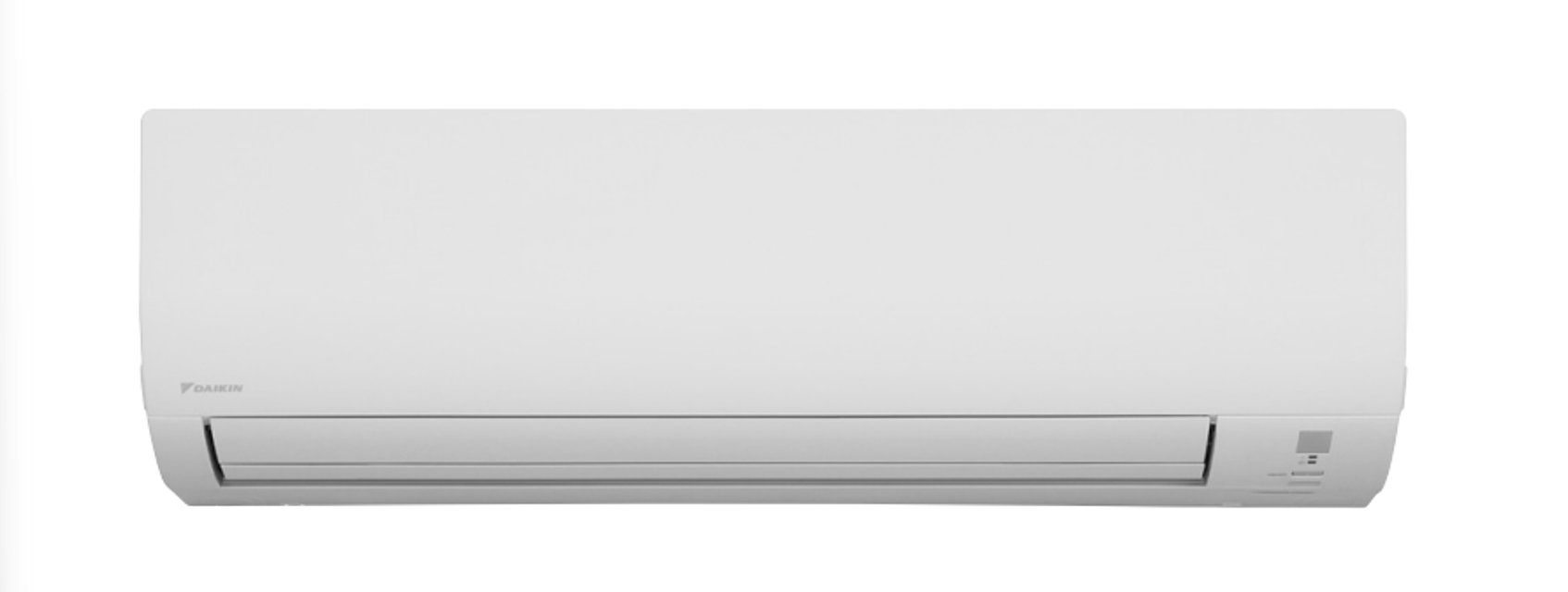

Daikin Indoor Unit Wall Mounted Type Air Conditioner FTX71K2V1B

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

EV coil is not faulty if there is continuity between the pins

Outdoor unit PCB (main PCB) is not faulty if continuity is confirmed

Sign off on the electronic expansion valve check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor using a multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Room temperature thermistor removed from PCB

Measure the resistance of the room temperature thermistor

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Indoor heat exchanger thermistor removed from PCB

Measure the resistance of the indoor heat exchanger thermistor

Set operation off and power off. Disconnect the connector S70 or S71.

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

Keep operation off and power off. Connect the connector S70 or S71.

Rotation pulses at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Outdoor fan motor functioning properly?

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Is the voltage approximately 0 V?

If voltage is not approximately 0 V, stop the procedure and report the issue

Enter the resistance between the pins of the DB1

Does the resistance indicate a short circuit?

Sign off on the main circuit short check

Fan motor wire breakdown / short circuit check

1. Check the connector for connection.

3. Check if each resistance at the phases U - V and V - W is 90 Ω ~ 100 Ω (between the pins; 12 - 9, and between 9 - 6).

1. Check the connector for connection.

2. Check the motor control voltage is generated (between the pins 2 - 3).

1. Check the connector for connection.
