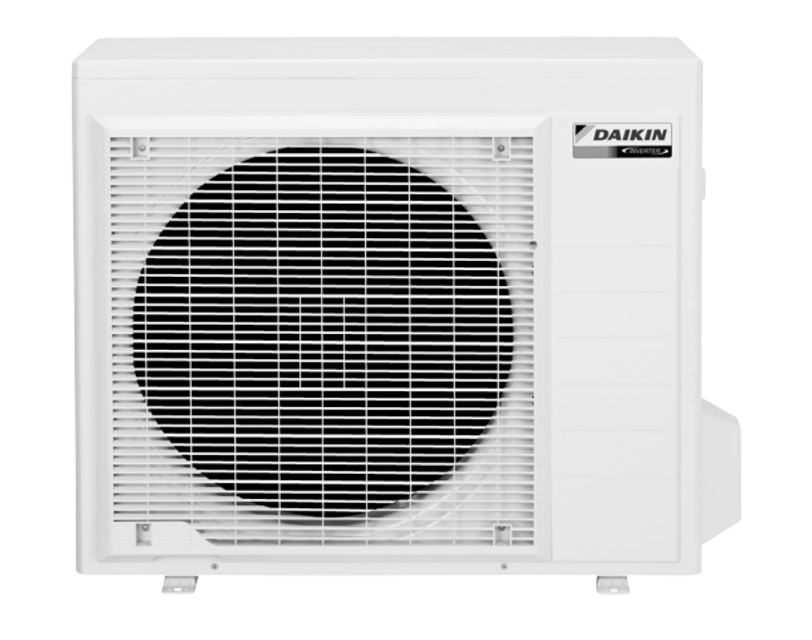

Daikin Outdoor Unit Wall Mounted Type Air Conditioner RX20K5V1B

Warning: This procedure requires trained personnel with PPE!

Install an inverter analyzer instead of a compressor.

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Terminals removed from the compressor?

Terminals connected to the terminals of the inverter analyzer?

Warning: Be careful not to let the terminals (U,V,W) touch each other. Otherwise, high voltage is applied.

Power transistor test operation activated from the indoor unit?

Diagnose method (Diagnose according to 6 LEDs lighting status.)

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

EV coil is not faulty if there is continuity between the pins

Outdoor unit PCB (main PCB) is faulty if continuity is confirmed in step 3

Sign off on the electronic expansion valve check

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Connector disengaged successfully?

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check

Ensure the voltage of 320 + 100 V ~ 320 - 50 V is applied.

Voltage between the pins 4 - 7 (320 VDC expected)

Control voltage between the pins 3 - 4 (15 VDC expected)

Rotation command voltage between the pins 2 - 4 (0 ~ 6.5 VDC expected)

Operation off and power off after checks?

4 rotation pulses (0 ~ 15 VDC) at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor using a multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Room temperature thermistor removed from the PCB

Measure the resistance of the room temperature thermistor

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Indoor heat exchanger thermistor removed from the PCB

Measure the resistance of the indoor heat exchanger thermistor
