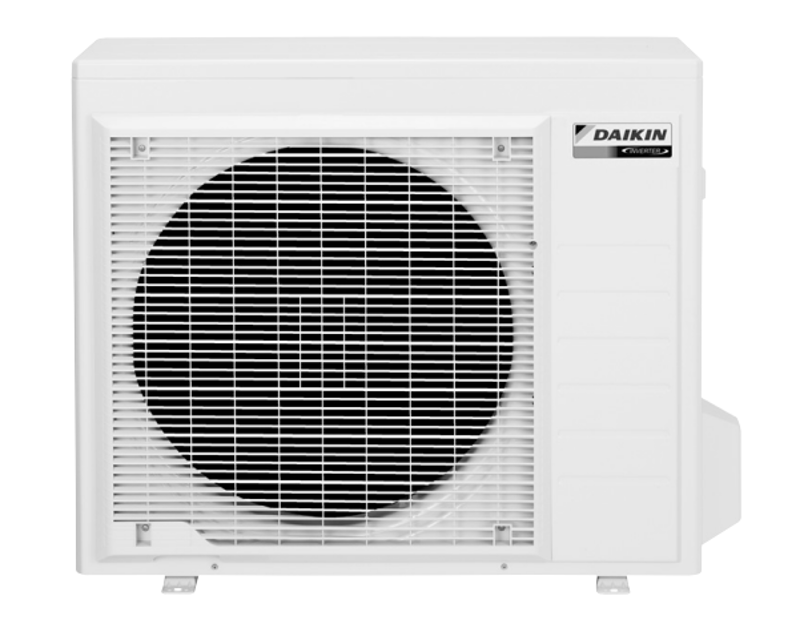

Daikin Outdoor Unit Wall Mounted Type Air Conditioner RX35K2V1B

Daikin Outdoor Unit Wall Mounted Type Air Conditioner RX35K2V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit Wall Mounted Type Air Conditioner Model RX35K2V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Main Circuit Short Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Check mark

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Check mark

Measure the resistance between the pins of the DB1 referring to the table below.

Check mark

Enter the resistance between the pins of the DB1

Check mark

Is the resistance ∞ or less than 1 kΩ?

Check mark

If the resistance is ∞ or less than 1 kΩ, short circuit occurs on the main circuit.

Check mark

Sign off on the main circuit short check

Run this procedureArrow right

Power Supply Waveforms Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Check mark

Check if the power supply waveform is a sine wave (Fig.1)

Check mark

Check if there is waveform disturbance near the zero-cross (sections circled in Fig.2)

Check mark

Upload a photo of the measured waveform

Check mark

Sign off on the power supply waveforms check

Run this procedureArrow right

Rotation Pulse Check

Check mark

Set operation off and power off. Disconnect the connector S70 or S71.

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 3 - 4

Check mark

Rotation command voltage between the pins 2 - 4

Check mark

Keep operation off and power off. Connect the connector S70 or S71.

Check mark

Rotation pulses at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Check mark

Fuse melted?

Check mark

Outdoor fan motor functioning properly?

Check mark

Defective PCB?

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Check mark

Measure the resistance of each thermistor using a multimeter

Check mark

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Check mark

Measure the resistance of the room temperature thermistor

Check mark

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Check mark

Measure the resistance of the indoor heat exchanger thermistor

Check mark

Sign off on the thermistor resistance check

Run this procedureArrow right

Power Module Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Check mark

Voltage between (+) and (–) of the power module is about 0 V

Check mark

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Check mark

Compressor harness connector successfully disconnected

Check mark

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Check mark

Enter the resistance measurement

Check mark

Evaluate the measurement results

Check mark

Sign off on the power module check

Run this procedureArrow right
