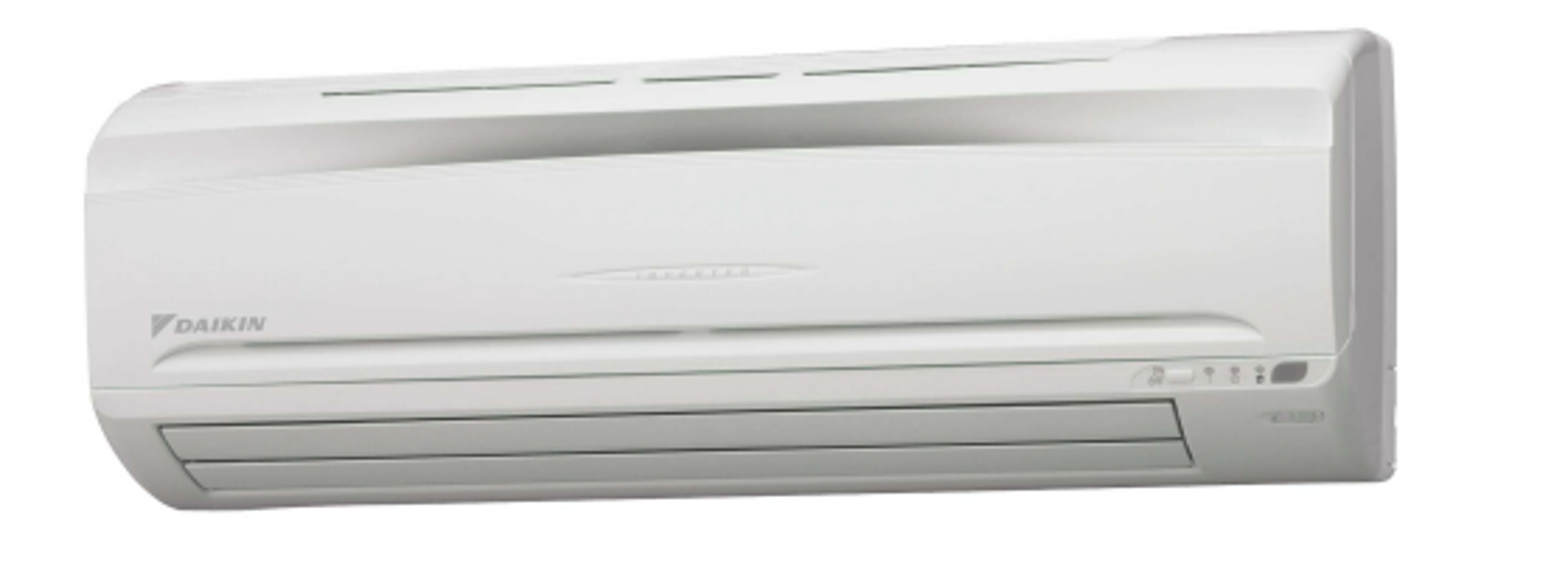

Daikin Indoor Unit Cooling Only Air Conditioner FTKS35BVMB

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS35BVMB

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly Photocatalytic Deodorizing Filter Maintenance

Warning: The filter material is paper, it cannot be cleaned with water.

Dust removed from the filter with a vacuum cleaner?

Enter the number of hours the filter was placed in the sun

Was the filter dried in the sun for approximately 6 hours?

Sign off on the filter maintenance

Run this procedure

Fan Rotor / Motor Removal

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Heat exchanger removed

Right side panel removed

Hook disengaged

Hexagon head set screw on the fan rotor loosened

Motor and fan rotor removed

Screw on the left side panel removed

Hook from the backward disengaged

Fan bearing removed

Run this procedure

Heat Exchanger Removal

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Conduct pump-down operation.

Remove the installation frame from the mounting plate.

Warning!: If gas leaks, repair the leak location, then connect all refrigerant from the unit. Conduct vacuum drying, and charge proper amount of refrigerant.

Warning!: Do not mix any gas (including air) other than the specified refrigerant (R410A) into refrigerating cycle.

Pay attention so that the residual drain will not make a floor dirty.

In case that a drain hose is buried inside a wall, remove it after the drain hose in the wall is pulled out.

Remove the drain hose.

Make curing so that the residual drain water will not leak out.

Run this procedure

Front Grille Removal

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

1. Opening and closing of service cover

1) Remove a service cover mounting screw. Open service cover upward

A switch for field setting is not provided in particular.

2. Removal of front grille assembly.

1) Remove the two screws, in the right and the left, which fix the main body with the front grille.

Screw stoppers inside the flap which were equipped in the existing models are not provided.

2) Disengage the two hooks on the upper part.

In case that the hooks are not pressed from above, remove the front panel and then remove the grille while pushing the hook through a clearance between the front grille and the heat exchanger.

Run this procedure

Power Supply Waveforms Check

Warning: This procedure requires trained personnel with PPE!

Measure the power supply waveform between pins 1 and 3 on the terminal board

Upload a photo of the measured waveform

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero cross?

Sign off on the power supply waveforms check

Run this procedure
