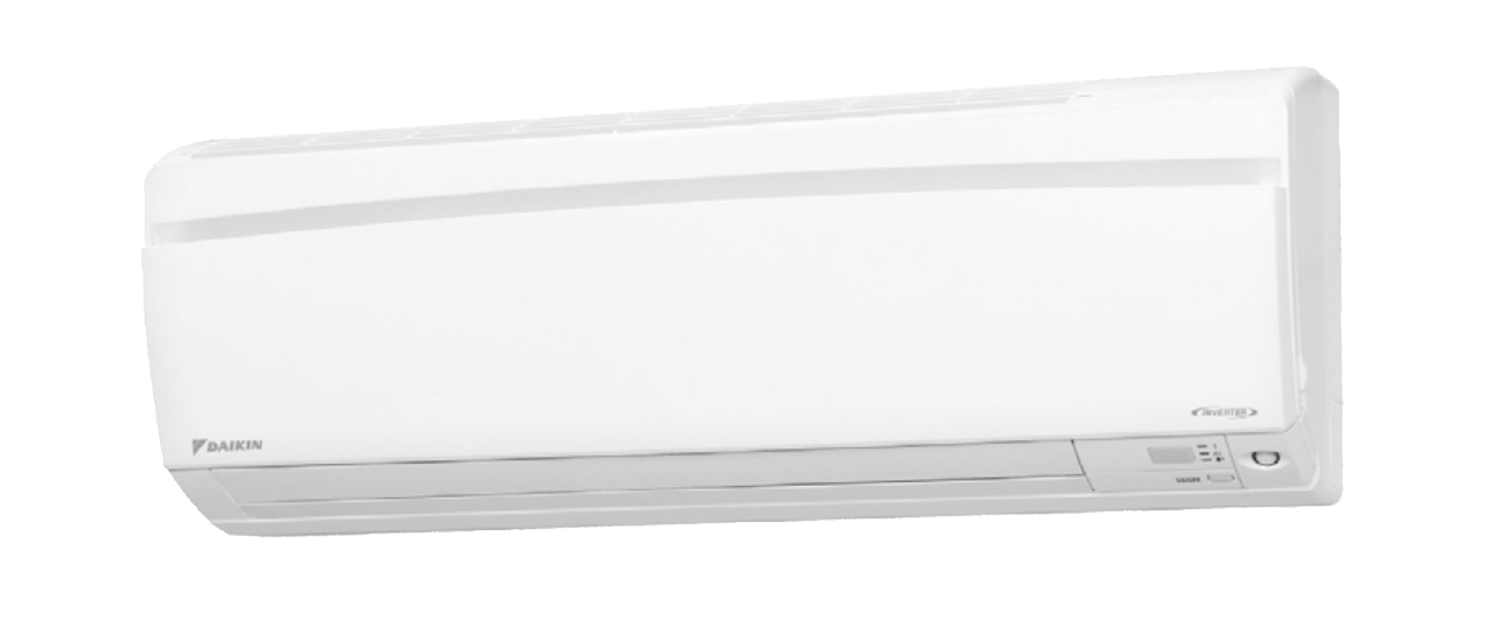

Daikin Indoor Unit Cooling Only Air Conditioner FTKD35GVM9

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Inserting a wooden base beneath the unit facilitates the removing work.

Lift up the indoor unit slightly and pull out the drain hose.

Place a plastic sheet under the drain pan to prevent from wetting the floor with remaining drain.

1) Remove the screw at the right side of the drain pan unit.

2) Press the right side of the drain pan unit and twist the left side.

3) Remove the drain pan unit from the indoor unit.

When reassembling, make sure that the hook at the left side is fitted in the groove.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Release the fan motor lead wires from the hooks.

Remove the screw of the fan rotor.

Remove the 2 screws of the fan motor fixing plate.

Unfasten the hook (a) of the fan motor fixing plate.

Unfasten the hook (b) and remove the fan motor fixing plate.

Sign off on the fan motor removal.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1) Remove the 2 screws of the right side plate.

2) Release the fan motor lead wire from the hooks and remove the right side plate.

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

(1) Insert the fan motor with approx. 5 mm (0.2 inch) left.

(2) Tighten the screw until it stops. Then give the screw one more turn.

(3) Rotate the fan rotor and confirm the fan motor and the fan rotor are installed appropriately.

(4) Tighten the screw completely if appropriate.

(5) If not appropriate, go back to (1).

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Screw covers and screws removed (right and left)

Open the horizontal blades before removing the screw covers and screws.

When reassembling the indoor unit, drive the screws with the horizontal blades opened or removed.

3 hooks on the top of the front grille unfastened

The convex marks (...) on the front panel indicate the position of the hooks.

Upper part of the front grille pulled out and lower part lifted up

When reassembling, make sure that the 3 hooks are fastened as they were.

When reassembling the front grille, be sure not to get it stuck on the spacer of the drain pan.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1) The figure shows the appearance of the electrical box.

3) Push the upper center of the shield plate and unfasten the 2 hooks.

2. Release the indoor heat exchanger thermistor.

1) Release the indoor heat exchanger thermistor and the earth / ground wire from the hooks.
