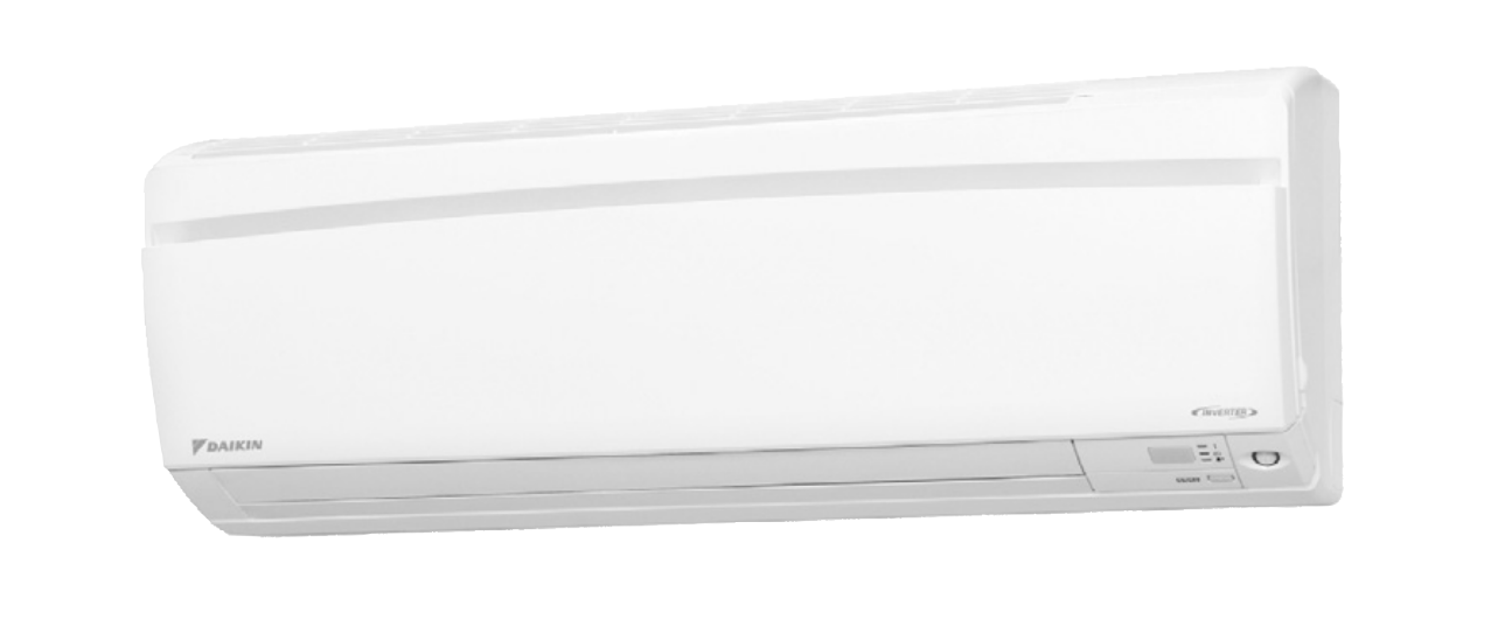

Daikin Indoor Unit Cooling Only Air Conditioner FTKS25GVMV

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS25GVMV

Integrate maintenance plans directly into your work orders in MaintainX.

Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Release the fan motor lead wires from the hooks.

Remove the screw of the fan rotor.

Remove the 2 screws of the fan motor fixing plate.

Unfasten the hook (a) of the fan motor fixing plate.

Unfasten the hook (b) and remove the fan motor fixing plate.

Remove the fan motor.

Sign off on the fan motor removal.

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Shield plate removed

Indoor heat exchanger thermistor released

Terminal board removed

Signal receiver unit removed

Signal receiver PCB removed

INTELLIGENT EYE sensor PCB removed

Display PCB removed

Control PCB removed

Run this procedure

Horizontal Blade / Vertical Blade ASSY Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the horizontal blades.

When reassembling, mount the large horizontal blade to the upper position and the small horizontal blade to the lower position.

Do not install them in the wrong place.

1) Unfasten the center shaft while bending the horizontal blade (upper) slightly.

2) Unfasten the left shaft.

3) Unfasten the right shaft.

4) Remove the horizontal blade (lower) in the same way.

Installation procedure

Run this procedure

Indoor Heat Exchanger Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

In pump-down work, be sure to stop the compressor before disconnecting the refrigerant pipe.

When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or wrap the indoor heat exchanger with cloths.

Caution: Be sure to conduct pump down operation before disassembling the refrigerant pipe.

From the viewpoint of global environmental protection, make sure to use a vacuum pump for air purging.

Remove the 2 screws which fix the indoor heat exchanger to the installation plate.

Disconnect the pipings.

Remove the indoor unit from the installation plate.

Unfasten the hook of the piping fixture at the back of the indoor unit and pull out the piping.

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw of the wire fixture.

Remove the 4 screws of the terminal board and disconnect the connecting wires.

Disconnect the connector [S6].

Disconnect the connector [S7].

[S6]: swing motor, [S7]: AC fan motor. Put any excess wires behind the power supply lead wire. DC fan motor models have no harness for [S7].

Remove the screw and remove the drip proof plate.

Pull out the indoor heat exchanger thermistor.

Remove the screw and detach the earth / ground wire.

Run this procedure
