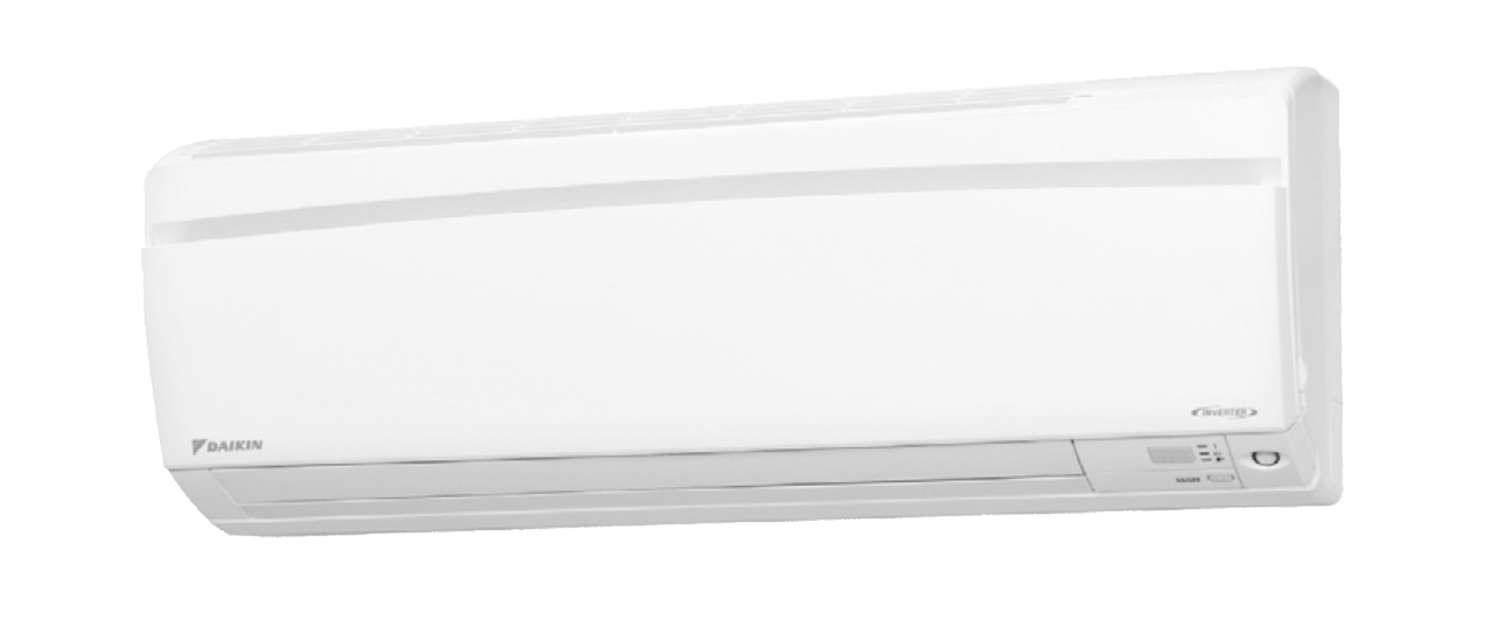

Daikin Indoor Unit Cooling Only Air Conditioner FTKS35GVMV

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS35GVMV

Integrate maintenance plans directly into your work orders in MaintainX.

Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Release the fan motor lead wires from the hooks.

Remove the screw of the fan rotor.

Remove the 2 screws of the fan motor fixing plate.

Unfasten the hook (a) of the fan motor fixing plate.

Unfasten the hook (b) and remove the fan motor fixing plate.

Remove the fan motor.

Sign off on the fan motor removal.

Run this procedure

Front Grille Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw covers and screws. (right and left)

Open the horizontal blades before removing the screw covers and screws.

When reassembling the indoor unit, drive the screws with the horizontal blades opened or removed.

Unfasten the 3 hooks on the top of the front grille.

The convex marks (...) on the front panel indicate the position of the hooks.

Pull the upper part of the front grille out and lift the lower part up, and then remove the front grille.

When reassembling, make sure that the 3 hooks are fastened as they were.

When reassembling the front grille, be sure not to get it stuck on the spacer of the drain pan.

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Shield plate removed

Indoor heat exchanger thermistor released

Terminal board removed

Signal receiver unit removed

Signal receiver PCB removed

INTELLIGENT EYE sensor PCB removed

Display PCB removed

Control PCB removed

Run this procedure

Fan Rotor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1) Remove the 2 screws of the right side plate.

2) Release the fan motor lead wire from the hooks and remove the right side plate.

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

(1) Insert the fan motor with approx. 5 mm (0.2 inch) left.

(2) Tighten the screw until it stops. Then give the screw one more turn.

(3) Rotate the fan rotor and confirm the fan motor and the fan rotor are installed appropriately.

(4) Tighten the screw completely if appropriate.

(5) If not appropriate, go back to (1).

Run this procedure

Air Filter Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the air filters.

The air filter is not marked for difference between the right and left sides.

Insert the air filter with the “FRONT” mark faced up.

The air filter can be set easily by inserting it along the guides.
