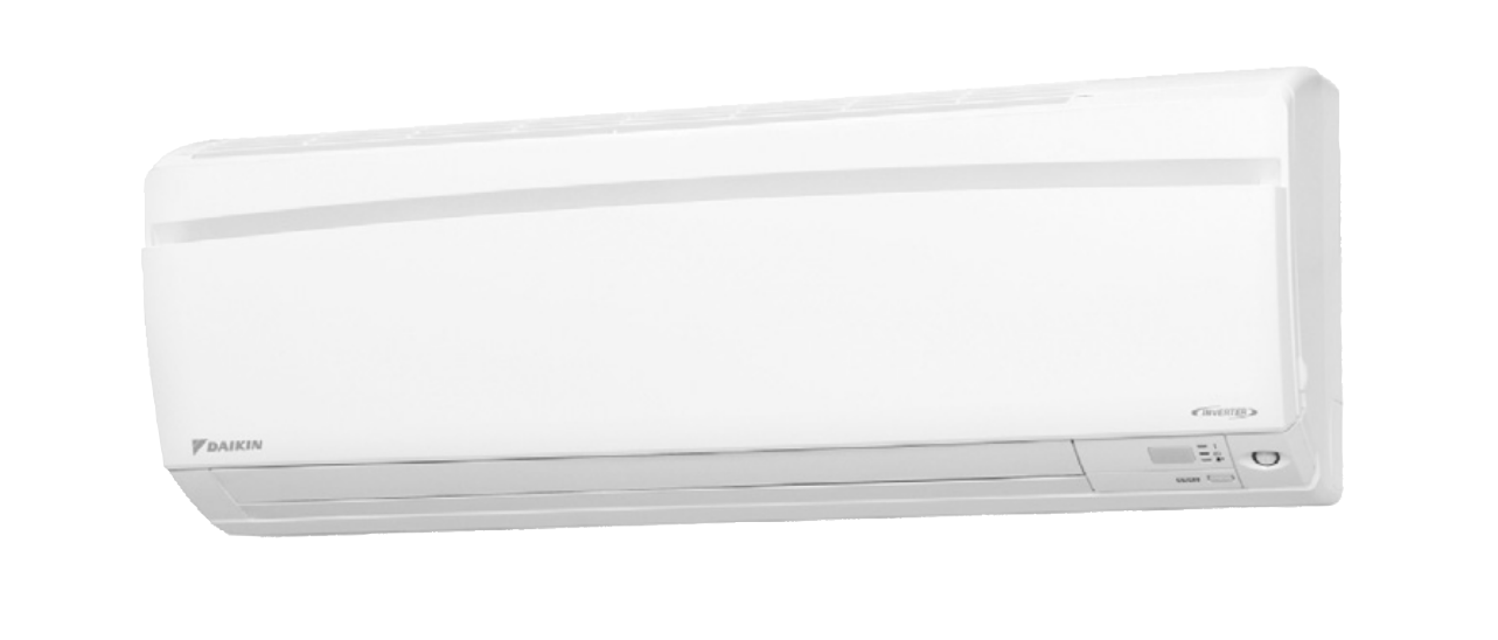

Daikin Indoor Unit Cooling Only Air Conditioner FTKS25JVMG9

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

The air filter is not marked for difference between the right and left sides.

Insert the air filter with the “FRONT” mark faced up.

The air filter can be set easily by inserting it along the guides.

Be sure to insert the hooks (at 2 lower positions) when mounting the air filter.

2) Pull out the air filter downward and remove it.

2. Remove the Titanium apatite photocatalytic airpurifying filters.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Open the front panel over the position where it stops.

Slide the left rotary shaft to the right and release it.

Remove the right rotary shaft in the same way.

When reassembling the front panel, fit the right and left rotary shafts one by one into the grooves and fully push them into position.

Sign off on the front panel removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Release the fan motor lead wires from the hooks.

Remove the screw of the fan rotor.

Remove the 2 screws of the fan motor fixing plate.

Unfasten the hook (a) of the fan motor fixing plate.

Unfasten the hook (b) and remove the fan motor fixing plate.

Sign off on the fan motor removal.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Inserting a wooden base beneath the unit facilitates the removing work.

Lift up the indoor unit slightly and pull out the drain hose.

Place a plastic sheet under the drain pan to prevent from wetting the floor with remaining drain.

1) Remove the screw at the right side of the drain pan unit.

2) Press the right side of the drain pan unit and twist the left side.

3) Remove the drain pan unit from the indoor unit.

When reassembling, make sure that the hook at the left side is fitted in the groove.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw of the wire fixture.

Remove the 4 screws of the terminal board and disconnect the connecting wires.

[S6]: swing motor, [S7]: AC fan motor. DC fan motor models have no harness for [S7].

Remove the screw and remove the drip proof plate.

Pull out the indoor heat exchanger thermistor.

Remove the screw and detach the earth / ground wire.
