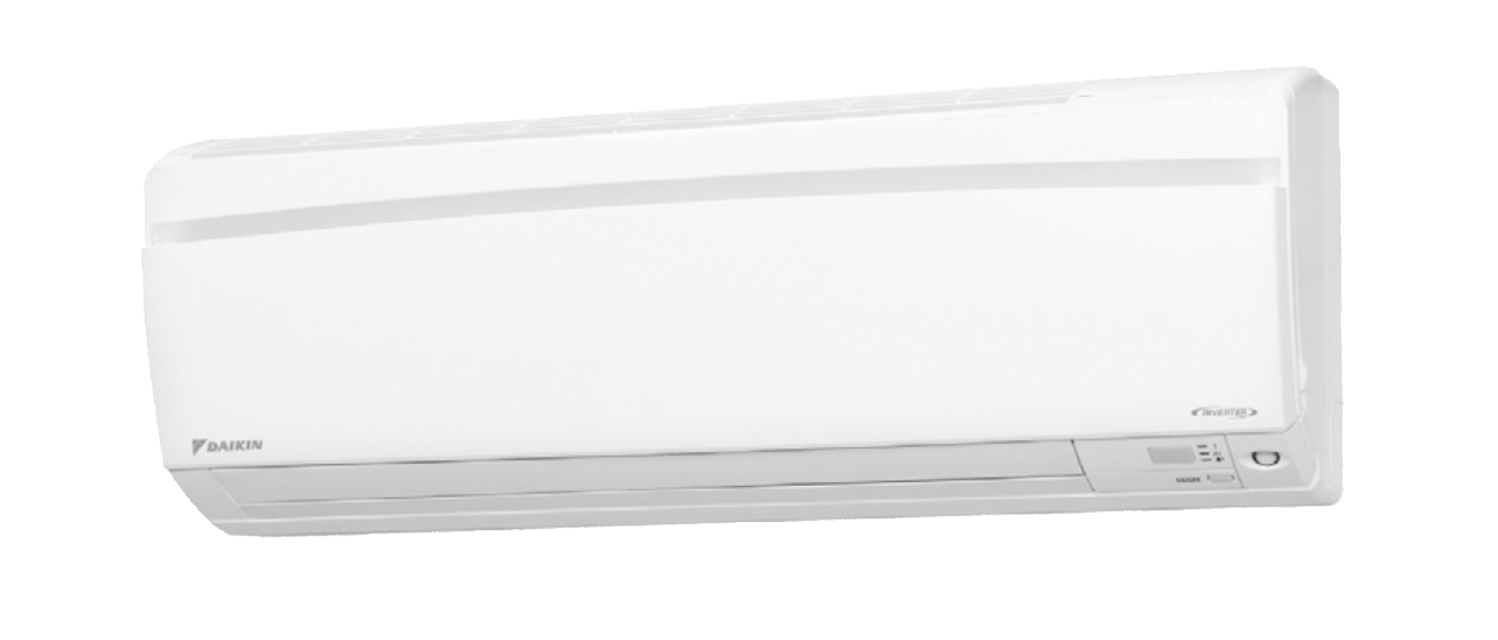

Daikin Indoor Unit Cooling Only Air Conditioner FTKS25JVMG

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS25JVMG

Integrate maintenance plans directly into your work orders in MaintainX.

Front Panel Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Open the front panel over the position where it stops.

Slide the left rotary shaft to the right and release it.

Remove the right rotary shaft in the same way.

When reassembling the front panel, fit the right and left rotary shafts one by one into the grooves and fully push them into position.

Sign off on the front panel removal

Run this procedure

Air Filter Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the air filters.

The air filter is not marked for difference between the right and left sides.

Insert the air filter with the “FRONT” mark faced up.

The air filter can be set easily by inserting it along the guides.

Be sure to insert the hooks (at 2 lower positions) when mounting the air filter.

1) Open the front panel.

2) Pull out the air filter downward and remove it.

2. Remove the Titanium apatite photocatalytic airpurifying filters.

Run this procedure

Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Release the fan motor lead wires from the hooks.

Remove the screw of the fan rotor.

Remove the 2 screws of the fan motor fixing plate.

Unfasten the hook (a) of the fan motor fixing plate.

Unfasten the hook (b) and remove the fan motor fixing plate.

Remove the fan motor.

Sign off on the fan motor removal.

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Shield plate removed

Indoor heat exchanger thermistor released

Terminal board removed

Signal receiver unit removed

Signal receiver PCB removed

INTELLIGENT EYE sensor PCB removed

Display PCB removed

Control PCB removed

Run this procedure

Horizontal Blade / Vertical Blade ASSY Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the horizontal blades.

When reassembling, mount the large horizontal blade to the upper position and the small horizontal blade to the lower position.

Do not install them in the wrong place.

1) Unfasten the center shaft while bending the horizontal blade (upper) slightly.

2) Unfasten the left shaft.

3) Unfasten the right shaft.

4) Remove the horizontal blade (lower) in the same way.

Installation procedure

Run this procedure
