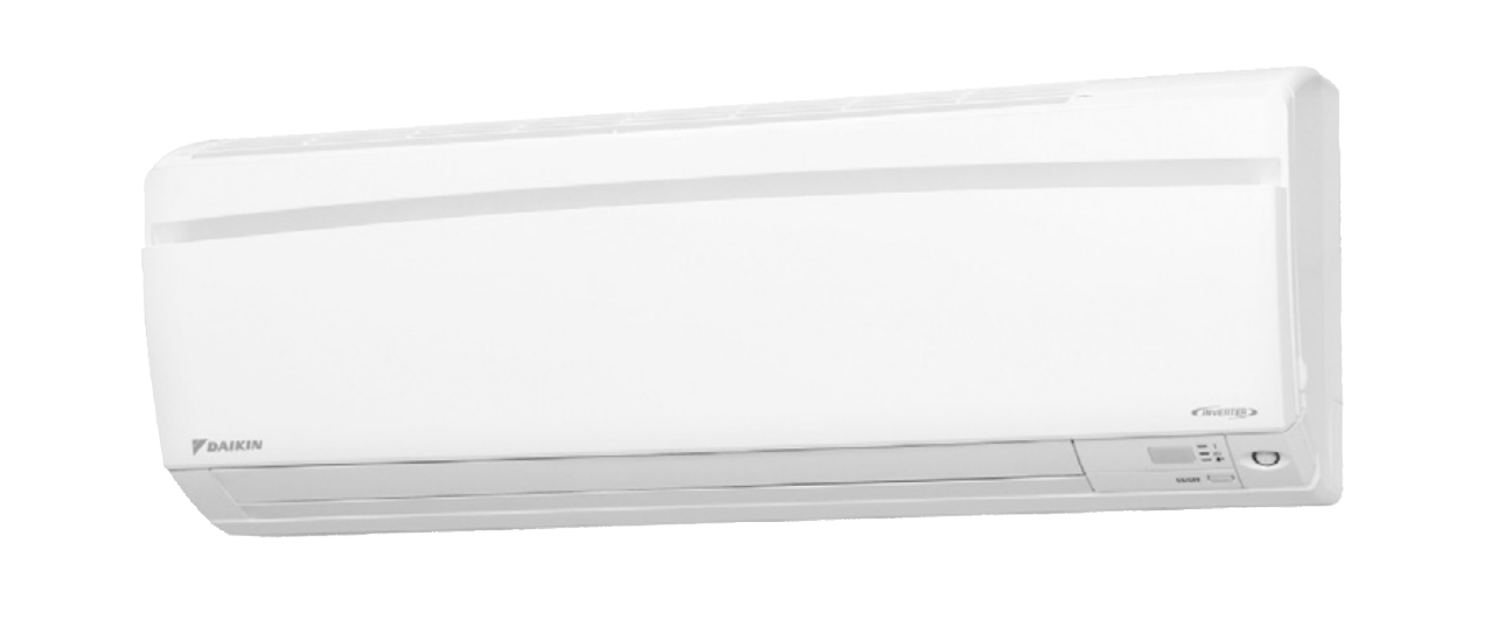

Daikin Indoor Unit Cooling Only Air Conditioner FTKD35GVMV

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

The air filter is not marked for difference between the right and left sides.

Insert the air filter with the “FRONT” mark faced up.

The air filter can be set easily by inserting it along the guides.

Be sure to insert the hooks (at 2 lower positions) when mounting the air filter.

2) Pull out the air filter downward and remove it.

2. Remove the Titanium apatite photocatalytic airpurifying filters.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1) Remove the 2 screws of the right side plate.

2) Release the fan motor lead wire from the hooks and remove the right side plate.

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

(1) Insert the fan motor with approx. 5 mm (0.2 inch) left.

(2) Tighten the screw until it stops. Then give the screw one more turn.

(3) Rotate the fan rotor and confirm the fan motor and the fan rotor are installed appropriately.

(4) Tighten the screw completely if appropriate.

(5) If not appropriate, go back to (1).

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw of the wire fixture.

Remove the 4 screws of the terminal board and disconnect the connecting wires.

Put any excess wires behind the power supply lead wire.

DC fan motor models have no harness for [S7].

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

In pump-down work, be sure to stop the compressor before disconnecting the refrigerant pipe.

When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or wrap the indoor heat exchanger with cloths.

Caution: Be sure to conduct pump down operation before disassembling the refrigerant pipe.

From the viewpoint of global environmental protection, make sure to use a vacuum pump for air purging.

Remove the 2 screws which fix the indoor heat exchanger to the installation plate.

Remove the indoor unit from the installation plate.

Unfasten the hook of the piping fixture at the back of the indoor unit and pull out the piping.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the horizontal blades.

When reassembling, mount the large horizontal blade to the upper position and the small horizontal blade to the lower position.

Do not install them in the wrong place.

1) Unfasten the center shaft while bending the horizontal blade (upper) slightly.

4) Remove the horizontal blade (lower) in the same way.
