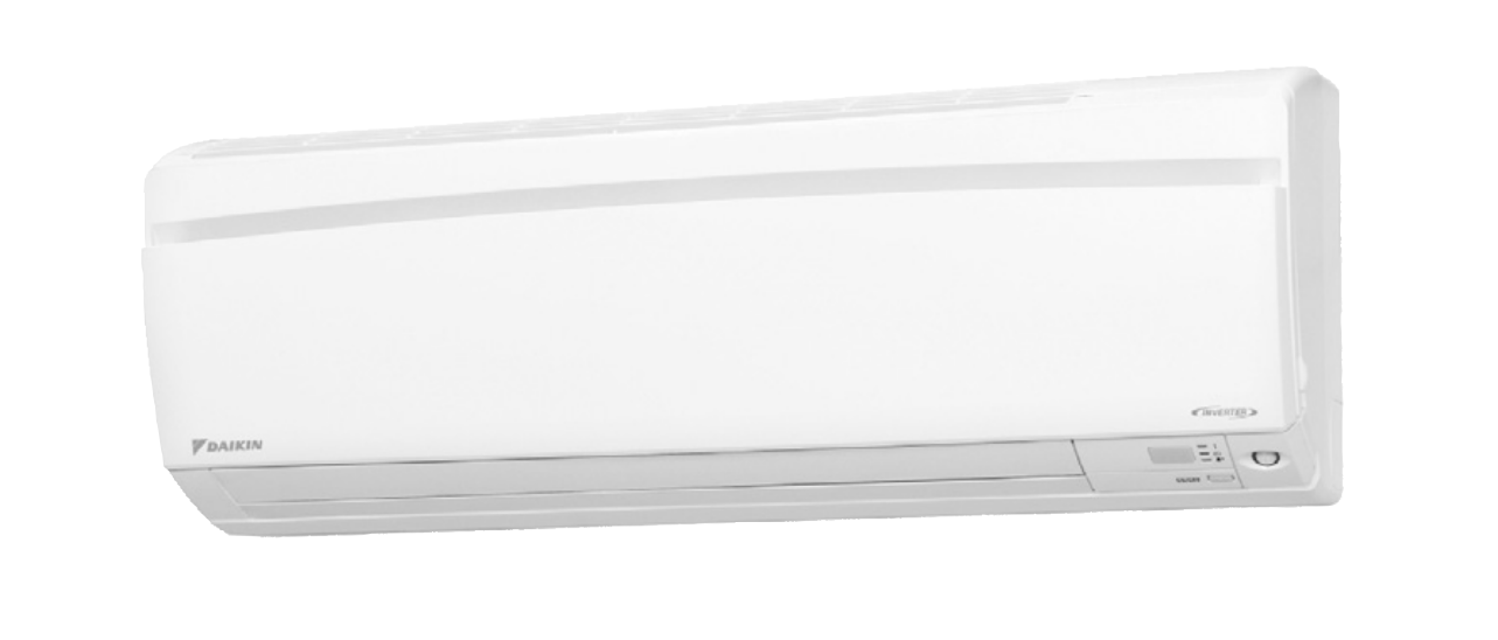

Daikin Indoor Unit Cooling Only Air Conditioner FTKS35KVM

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1) Remove the 2 screws of the right side plate.

2) Release the fan motor lead wire from the hooks and remove the right side plate.

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

(1) Insert the fan motor with approx. 5 mm (0.2 inch) left.

(2) Tighten the screw until it stops. Then give the screw one more turn.

(3) Rotate the fan rotor and confirm the fan motor and the fan rotor are installed appropriately.

(4) Tighten the screw completely if appropriate.

(5) If not appropriate, go back to (1).

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Open the front panel over the position where it stops.

Slide the left rotary shaft to the right and release it.

Remove the right rotary shaft in the same way.

When reassembling the front panel, fit the right and left rotary shafts one by one into the grooves and fully push them into position.

Sign off on the front panel removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Screw covers and screws removed

Open the horizontal blades before removing the screw covers and screws.

When reassembling the indoor unit, drive the screws with the horizontal blades opened or removed.

3 hooks on the top of the front grille unfastened

The convex marks (...) on the front panel indicate the position of the hooks.

Upper part of the front grille pulled out and lower part lifted up

When reassembling, make sure that the 3 hooks are fastened as they were.

When reassembling the front grille, be sure not to get it stuck on the spacer of the drain pan.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Indoor heat exchanger thermistor released

INTELLIGENT EYE sensor PCB removed

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Inserting a wooden base beneath the unit facilitates the removing work.

Lift up the indoor unit slightly and pull out the drain hose.

Place a plastic sheet under the drain pan to prevent from wetting the floor with remaining drain.

1) Remove the screw at the right side of the drain pan unit.

2) Press the right side of the drain pan unit and twist the left side.

3) Remove the drain pan unit from the indoor unit.

When reassembling, make sure that the hook at the left side is fitted in the groove.
