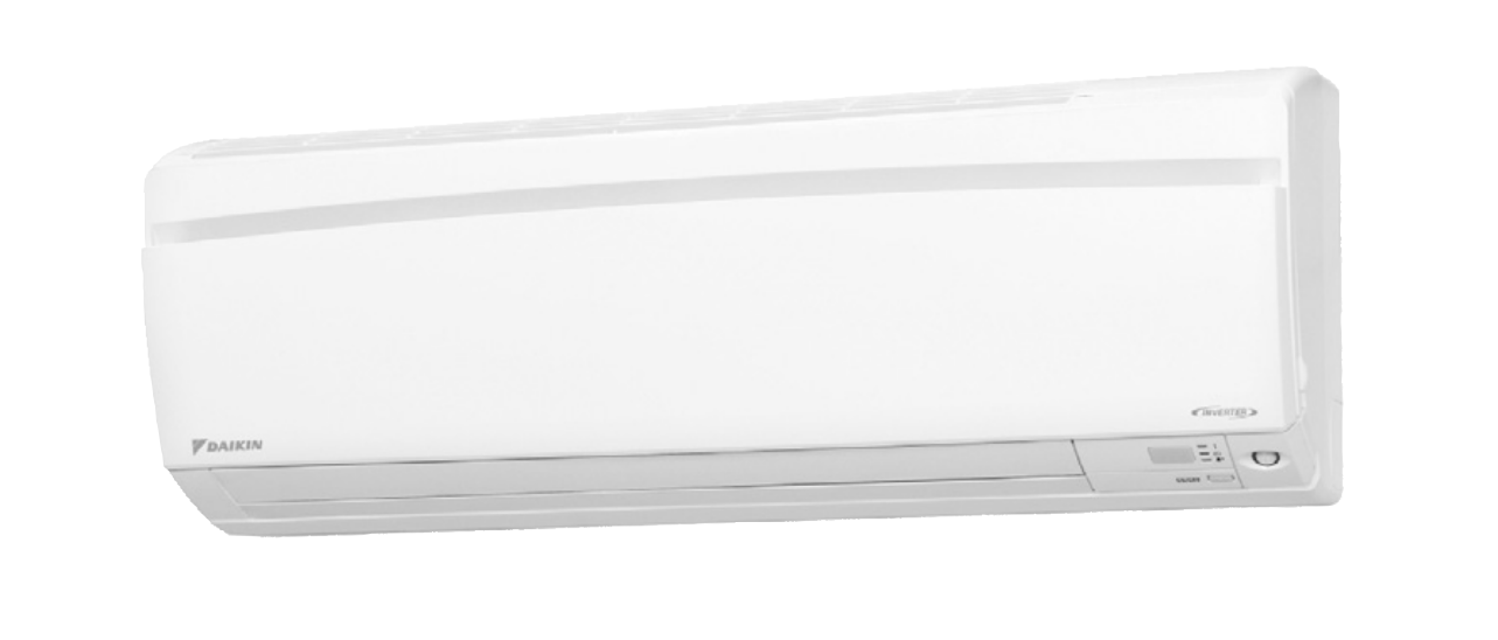

Daikin Indoor Unit Cooling Only Air Conditioner FTKS35EVMV

Daikin Indoor Unit Cooling Only Air Conditioner FTKS35EVMV

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Cooling Only Air Conditioner Model FTKS35EVMV

Integrate maintenance plans directly into your work orders in MaintainX.

Electrical Box Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Remove the screw of the wire fixture.

Check mark

Remove the 4 screws of the terminal board and disconnect the connecting wires.

Check mark

Disconnect the connector [S6].

Check mark

Disconnect the connector [S7].

Check mark

[S6]: swing motor, [S7]: AC fan motor. DC fan motor models have no harness for [S7].

Check mark

Remove the screw and remove the drip proof plate.

Check mark

Pull out the indoor heat exchanger thermistor.

Check mark

Remove the screw and detach the earth / ground wire.

Run this procedureArrow right

Front Grille Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Screw covers and screws removed (right and left)

Check mark

Open the horizontal blades before removing the screw covers and screws.

Check mark

When reassembling the indoor unit, drive the screws with the horizontal blades opened or removed.

Check mark

3 hooks on the top of the front grille unfastened

Check mark

The convex marks (...) on the front panel indicate the position of the hooks.

Check mark

Upper part of the front grille pulled out and lower part lifted up

Check mark

When reassembling, make sure that the 3 hooks are fastened as they were.

Check mark

When reassembling the front grille, be sure not to get it stuck on the spacer of the drain pan.

Run this procedureArrow right

Air Filter Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

1. Remove the air filters.

Check mark

The air filter is not marked for difference between the right and left sides.

Check mark

Insert the air filter with the “FRONT” mark faced up.

Check mark

The air filter can be set easily by inserting it along the guides.

Check mark

Be sure to insert the hooks (at 2 lower positions) when mounting the air filter.

Check mark

1) Open the front panel.

Check mark

2) Pull out the air filter downward and remove it.

Check mark

2. Remove the Titanium apatite photocatalytic airpurifying filters.

Run this procedureArrow right

Indoor Heat Exchanger Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

In pump-down work, be sure to stop the compressor before disconnecting the refrigerant pipe. If the refrigerant pipe is disconnected with the compressor operating and the stop valve open, air may be sucked in and may generate an over-pressure in refrigeration cycle, thus resulting in pipe rupture or accidental injury.

Check mark

When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or wrap the indoor heat exchanger with cloths. (You may be injured by the fins.)

Check mark

Caution: Be sure to conduct pump down operation before disassembling the refrigerant pipe. If the refrigerant leaks, repair the spot of leaking, then collect all refrigerant from the unit. After conducting vacuum drying, recharge proper amount of refrigerant. From the viewpoint of global environmental protection, make sure to use a vacuum pump for air purging.

Check mark

Remove the 2 screws which fix the indoor heat exchanger to the installation plate.

Check mark

Disconnect the pipings. Place a plastic sheet under the drain pan to prevent from wetting the floor with remaining drain. If the drain hose is embedded in the wall, disconnect the drain hose beforehand. Carry out the removal work with 2 wrenches. When the pipings are disconnected, protect both the openings of pipe and unit from entering of moisture. Inserting a wooden base beneath the unit facilitates the removing work.

Check mark

Remove the indoor unit from the installation plate.

Check mark

Unfasten the hook of the piping fixture at the back of the indoor unit and pull out the piping.

Check mark

Slightly widen the auxiliary piping.

Run this procedureArrow right

Fan Rotor Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Remove the 2 screws of the right side plate.

Check mark

Release the fan motor lead wire from the hooks and remove the right side plate.

Check mark

When reassembling the fan motor and the fan rotor, provide as much as 5 mm (0.2 inch) of play between the side face of the rotor and the bottom frame.

Check mark

Insert the fan motor with approx. 5 mm (0.2 inch) left.

Check mark

Tighten the screw until it stops. Then give the screw one more turn.

Check mark

Rotate the fan rotor and confirm the fan motor and the fan rotor are installed appropriately.

Check mark

Tighten the screw completely if appropriate.

Check mark

If not appropriate, go back to (1).

Run this procedureArrow right
