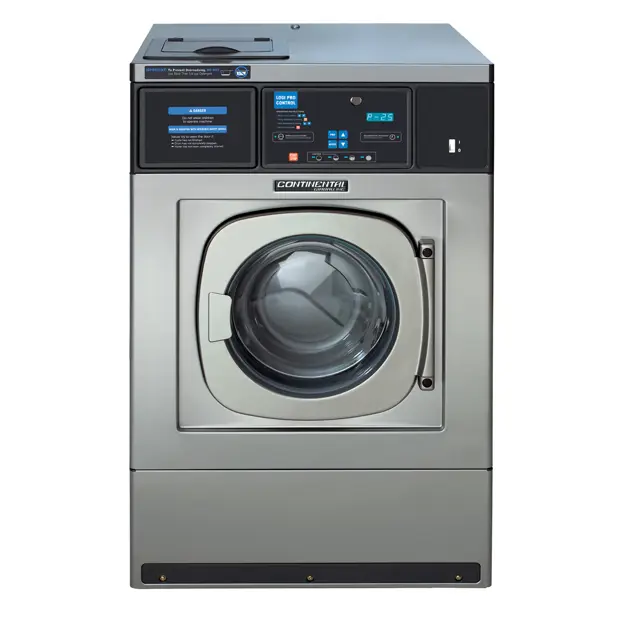

Continental Washer HS-6008

Match up the front and side panels and fix with screws

Fix the ground wire from the control panel with the top left screw

Fit the door closing and locking mechanism on the front panel and fix with screws

Check the door catch is correctly lined up and slots in place

Place the door seal around the front rim and fasten with the fixing clip

Close the washing machine's control panel using the 22mm wrench (7/8 inch)

Replace the top panel and close with the key supplied with the machine

Position the bottom cover panel below the front panel, lever from the bottom upwards and fix with three screws

Rest the outer drum separator on a flat, hard, clean surface.

Remove the old seal from its housing.

Position the new radial seal on top of the outer drum separator with the seal spring facing outwards.

Insert the seal completely using tool F (refer to fig. 18).

Spread a little grease where the spring is on the inside of the radial seal.

Ensure the outer drum separator is fixed as shown in the diagram (fig. 23)

Verify the drain position is at the bottom of the outer drum

Use a 13mm wrench (9/16 inch) to tighten the bolts from the inside of the outer drum

Are all bolts firmly tightened?

Note the position of the level sensor tube for reassembly

Note the position of screws and washers for reassembly

Remove the L screws fastening the bearings' box to the back of the outer drum

Remove the M screws fastening the bearings' box to the outer drum

Remove the V-ring from its housing

Position tool X in the ring seal groove and tighten with the Allen key

Protect the shaft with the cover which comes with tool X

Tighten the central bolt with a wrench to extract the ring seal

Remove the two O rings from inside the ring

Fit the two new O rings inside the ring seal

Lubricate the shaft with soapy water
