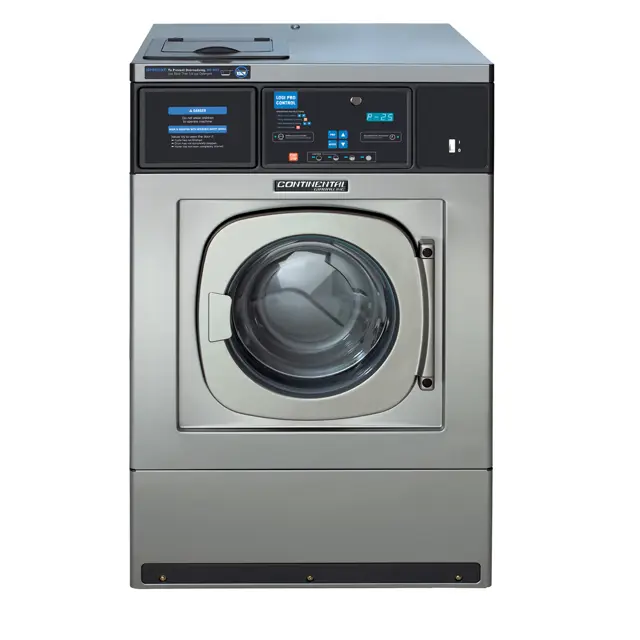

Continental Washer MS-610

Rest the outer drum separator on a flat, hard, clean surface

Remove the old seal from its housing

Position the new radial seal on top of the outer drum separator with the seal spring facing outwards

Insert the seal completely using tool F

Spread a little grease where the spring is on the inside of the radial seal

2.4. Disassembling the drum (MS-610 / EM025)

Ensure two people are present for the operation

Take the fastening screw out of the drum pulley

Remove the pulley from the shaft

Fix H tool and protect the shaft with the protector accompanying tool H

Use a wrench to screw and push the drum forward (fig. 8)

Move the rear central cover upwards and separate it from the machine

Separate the lower front cover from the machine

Loosen the three screws from the inside of the outer drum

Is another person holding the outer drum separator secure from outside the back of the machine?

Remove the outer drum separator from outside the back of the machine

Remove the V-ring protection cover from the inside of the outer drum

Take out the joint screw of the fastening ring of the front panel

Hold the front panel and remove the union gasket

Remove the outer drum front panel
