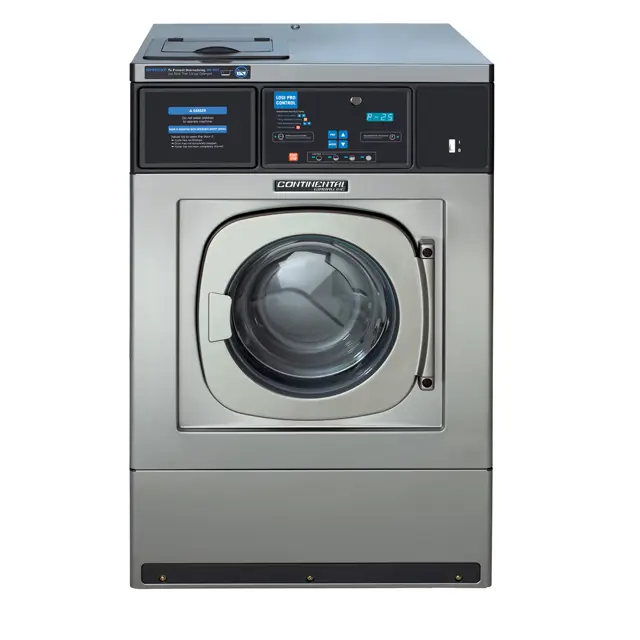

Continental Washer EH020

Remove the V-ring from its housing

Position tool X in the ring seal groove and tighten with the Allen key

Protect the shaft with the cover which comes with tool X

Tighten the central bolt with a wrench to extract the ring seal

Remove the two O rings from inside the ring

Fit the two new O rings inside the ring seal

Lubricate the shaft with soapy water

Introduce the end of the drum into the outer drum without striking or scraping the shaft against the back.

Center the shaft with bearings and introduce it up to the back.

Tool Inserter and Pulley Installation

Mount the tool inserter G and tighten the locking nut until the drum is firmly fixed.

Mount the pulley and tighten the fastening screw.

Check that the drum rotates freely.

Mounting the Outer Drum Separator

Keep the outer drum separator fixed as shown in the diagram (fig. 23)

Ensure the drain position is at the bottom of the outer drum

Are the bolts firmly tightened from the inside of the outer drum using the 13mm wrench (9/16 inch)?

Take out the joint screw of the fastening ring of the front panel

Hold the front panel and remove the union gasket

Remove the outer drum front panel

Cleaning the back of the outer drum

Is the watertight seal to be changed?

Check the back of the outer drum for cleanliness and absence of dents, scratches, or deformations.

Use a damp cloth to eliminate remains of detergent or fabric.

Clean rubber remains with solvent.

Clean lime adherence with anti-lime liquid and wipe with a damp cloth.
