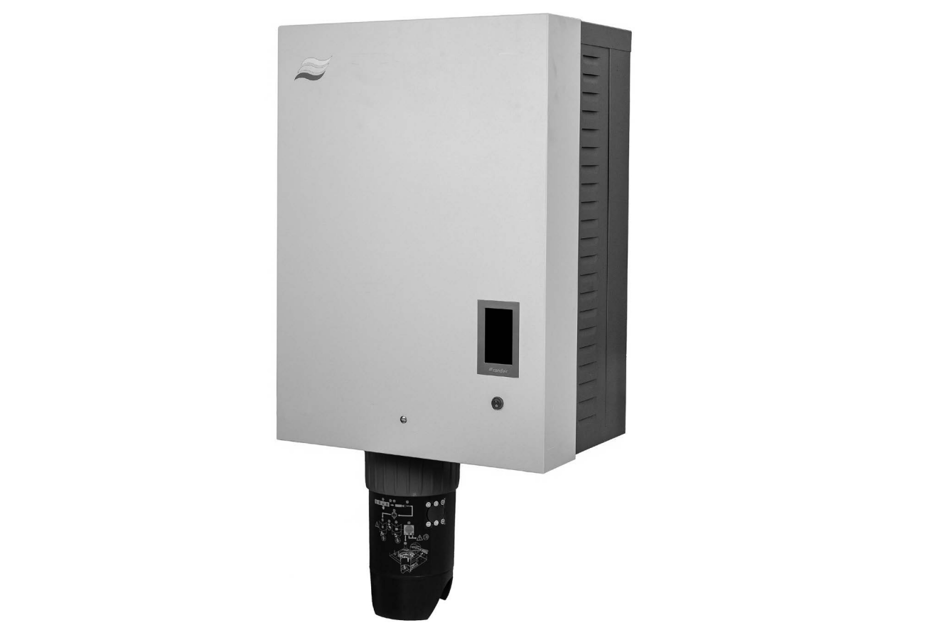

condair Steam Humidifier RS-130

Dump any lime in scale collector tank

Remove limescale inside scale collector tank and on the strainer insert using a soft bristled brush

Wash scale collector tank with lukewarm soap solution and rinse with tap water

Connection Ring Scale Collector Tank

Wipe off any limescale with a damp cloth without detergent

Check the connection ring for cracks and replace if necessary

Steam Cylinder / Steam Cylinder Insert

Remove limescale using a soft bristled brush

Disconnect control unit from the mains by switching off the electrical isolator and secure electrical isolator in 'Off' position against inadvertent switching on.

Unlock the front cover of the steam humidifier and remove it (for large units with two front covers: remove the front cover on the control compartment side).

Swivel control board assembly 90° outwards.

Replace desired fuse or the backup battery.

Ensure the contact protection of fuse 'F2' is relocated after the fuse has been replaced.

Swivel control board assembly 90° inwards.

Has the warning for contactor replacement appeared?

Is it the scheduled 5-year replacement time?

Ensure power is turned off before starting replacement

Verify the following tools are available

Install the new contactor purchased from Condair

Check the installation of the new contactor

Connection ring scale collector tank

Personnel Qualification and Safety

Verify personnel qualification and authorization by the owner

Ensure all maintenance instructions and details are followed

Use only original Condair spare parts for replacements

Switch off the unit, disconnect from mains, and stop water supply before maintenance

Secure the unit against inadvertent power-up

Implement ESD protection measures for electronic components

Wait for components to cool down to prevent burns

Maintenance Intervals and Counters
