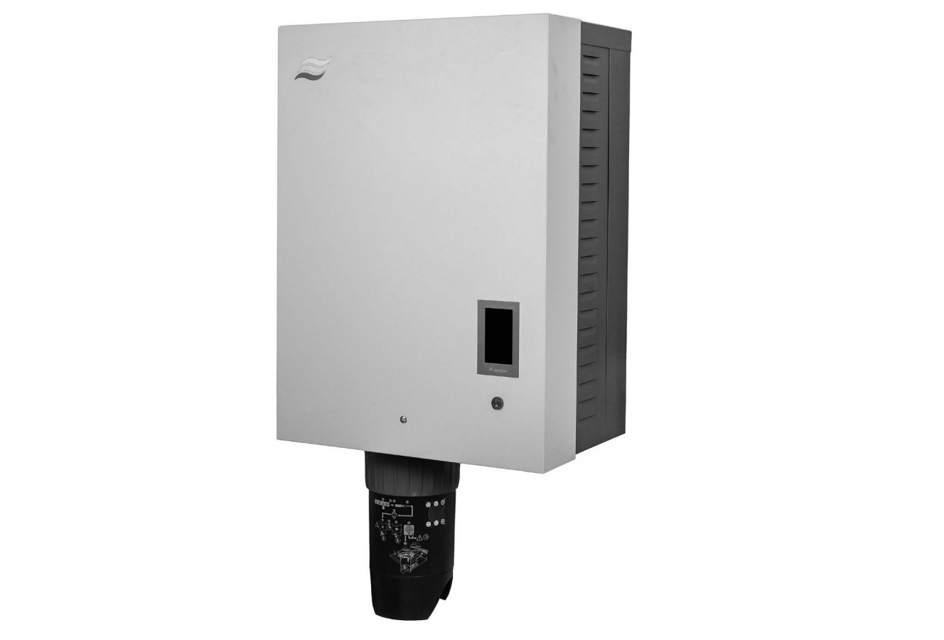

condair Steam Humidifier RS-10

Disconnect control unit from the mains by switching off the electrical isolator and secure electrical isolator in 'Off' position against inadvertent switching on.

Unlock the front cover of the steam humidifier and remove it (for large units with two front covers: remove the front cover on the control compartment side).

Swivel control board assembly 90° outwards.

Replace desired fuse or the backup battery

Ensure the contact protection of fuse 'F2' is relocated after the fuse has been replaced.

Swivel control board assembly 90° inwards.

Is the warning for contactor replacement active?

Verify that the contactors are due for replacement (5 years since last replacement).

Ensure power is turned off before starting the replacement.

Was the contactor replaced by a certified electrician?

Verify that the following parts are replaced

Check that the new contactors are functioning correctly.

Personnel Qualification and Safety

Verify personnel qualification and authorization by the owner

Follow maintenance instructions and use original Condair spare parts

Ensure safety precautions are followed

Implement ESD protection measures

Ensure components have cooled down before maintenance

Maintenance Intervals and Counters

Has the 'Small maintenance' counter elapsed?

Has the 'Extended maintenance' counter elapsed?

Dump any lime in scale collector tank

Remove limescale inside scale collector tank and on the strainer insert using a soft bristled brush

Wash scale collector tank with lukewarm soap solution and rinse with tap water

Connection Ring Scale Collector Tank

Wipe off any limescale with a damp cloth without detergent

Check the connection ring for cracks and replace if necessary

Steam Cylinder / Steam Cylinder Insert

Remove limescale using a soft bristled brush

Inspect and clean components if necessary

Inspect and replace if necessary

Inspect, clean, and replace if necessary

Tighten the supply pipe if necessary

Clean water filter, if available

Perform Megger test on heating elements
