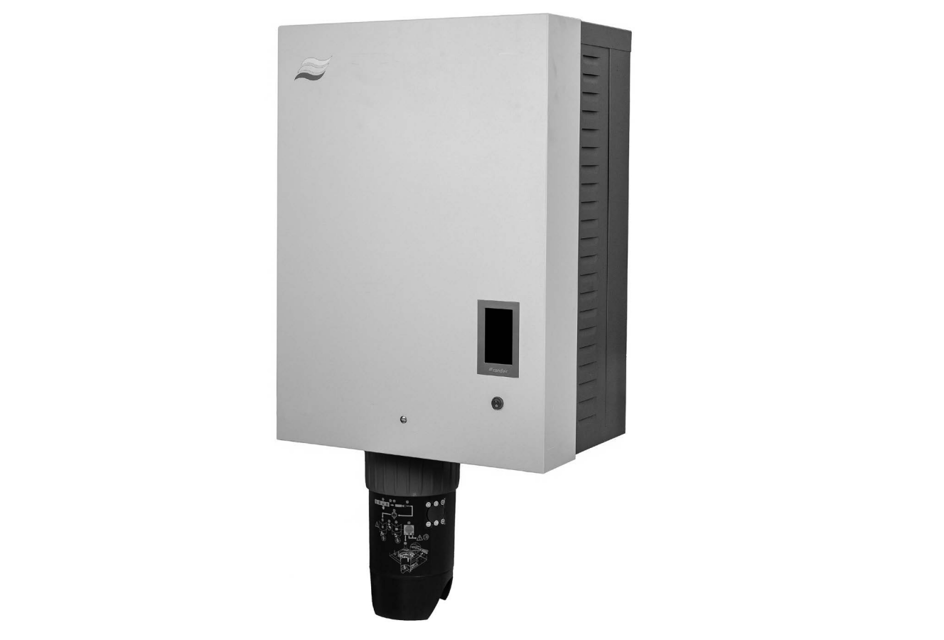

condair Steam Humidifier RS-15

Create an account to install this asset package.

Maintenance Plans for condair Steam Humidifier Model RS-15

Integrate maintenance plans directly into your work orders in MaintainX.

Steam Humidifier Cleaning

Scale Collector Tank

Dump any lime in scale collector tank

Remove limescale inside scale collector tank and on the strainer insert using a soft bristled brush

Wash scale collector tank with lukewarm soap solution and rinse with tap water

Connection Ring Scale Collector Tank

Wipe off any limescale with a damp cloth without detergent

Check the connection ring for cracks and replace if necessary

Steam Cylinder / Steam Cylinder Insert

Remove limescale using a soft bristled brush

Run this procedure

Steam Humidifier Maintenance

Small Maintenance

Inspect and clean components if necessary

Inspect and replace defective hoses if necessary

Check supply pipe is tight and tighten if necessary

Clean water filter, if available

Extended Maintenance

Remove, disassemble, clean, and replace components if necessary

Inspect connection ring scale collector tank and replace if necessary

Inspect steam cylinder, disassemble and clean, replace defective components if necessary

Run this procedure

5 Yearly Contactor Replacement

Pre-Replacement Checks

Has the warning for contactor replacement appeared?

Verify the age of the current contactors

Replacement Process

Ensure the following safety measures are in place

Remove the old contactors

Install new contactors purchased from Condair

Post-Replacement Verification

Is the new contactor functioning correctly?

Run this procedure

Control Unit Fuse And Backup Battery Replacement

Preparation

Disconnect control unit from the mains by switching off the electrical isolator and secure electrical isolator in 'Off' position against inadvertent switching on.

Unlock the front cover of the steam humidifier and remove it (for large units with two front covers: remove the front cover on the control compartment side).

Fuse and Battery Replacement

Swivel control board assembly 90° outwards.

Replace desired fuse or the backup battery.

Ensure the contact protection of fuse 'F2' is relocated after the fuse has been replaced.

Reassembly

Swivel control board assembly 90° inwards.

Run this procedure

1 Yearly Steam Humidifier Maintenance

Personnel Qualification and Safety

Verify personnel qualification and authorization by the owner

Follow maintenance instructions and use original Condair spare parts

Set Condair RS out of operation before maintenance
