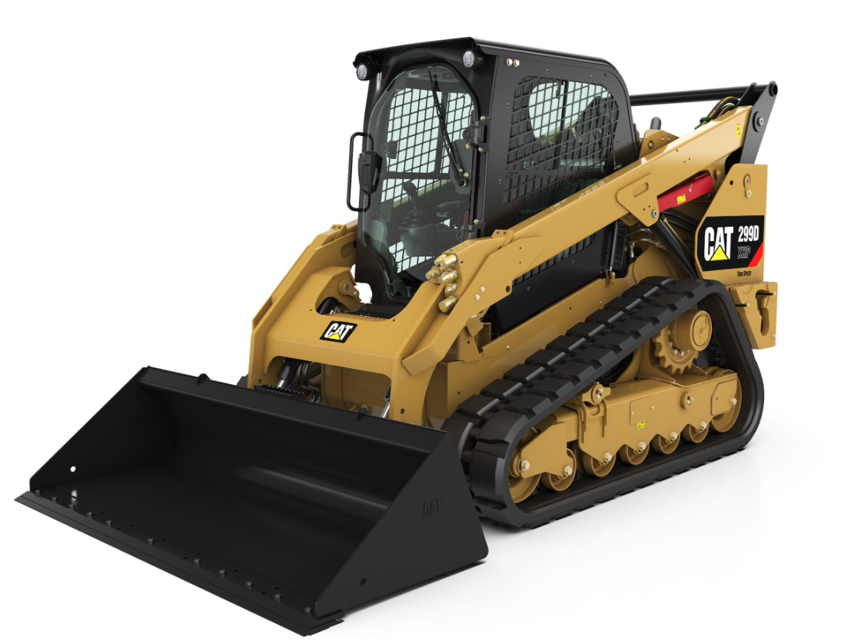

Caterpillar Skid Steer Loader 299D XHP

Cooling System Coolant Sample (Level 2) - Obtain

NOTICE: Always use a designated pump for oil sampling, and use a separate designated pump for coolant sampling.

Warning: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

Sample of the coolant obtained from the radiator?

Note: Do not take the sample from the Coolant Overflow Reservoir.

Submit the sample for Level 2 analysis.

Removed the hydraulic oil tank cap?

Removed the access panel in the belly guard underneath the machine?

Air Conditioner Condenser - Clean

Personal injury can result from air pressure.

Personal injury can result without following proper procedure. When using pressure air, wear a protective face shield and protective clothing.

Maximum air pressure at the nozzle must be less than 205 kPa (30 psi) for cleaning purposes.

The air conditioner condenser is attached to the engine access door.

Note: Blow compressed air through the core in the opposite direction of air flow to clean condenser.

Single Level Suspension (SLS) undercarriage

Dual Level Suspension (DLS) undercarriage

Diesel Exhaust Fluid Filter - Replace

Ensure that the engine is stopped before any servicing or repair is performed.

Ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product.

Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Dispose of all fluids according to local regulations and mandates.

The DEF filter is located on the left side of the machine under the cab. Tilt the cab upward.

Remove the black plastic cover and then diesel exhaust fluid (DEF) filter assembly.

Install new DEF filter. Replace DEF filter cap.

Inspect the track visually for damage or missing fasteners

Replace any grousers that are damaged

Replace any fasteners that are missing

Loosen the greaser with an appropriate wrench or socket to relax the tension on the track

Tighten the greaser to tighten the tension on the track

Apply grease to the greaser until the proper tension is achieved

If a new belt is installed, check the belt adjustment after 30 minutes of operation. A belt is considered used after 30 minutes of operation.

1. Stop the engine in order to inspect the belt.

2. Open the engine access door. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

3. Loosen the quarter-turn fasteners (1) on the front of the guard.

4. Remove the guard for the V-belt.

5. Inspect the condition of the belt and the adjustment of the belt. The belt should deflect 10 mm (0.39 inch) to 12 mm (0.47 inch) under a straight pull of 10 kg (22 lb). This measurement should be taken between the alternator pulley and the crankshaft pulley.

Note: A 144-0235 Borroughs Belt Tension Gauge may be used to measure belt tension. This measurement should be taken between the alternator pulley and the crankshaft pulley. Refer to the following table for belt tension.

6. Loosen the mounting bolt (4). Loosen the adjusting bolt (5).
