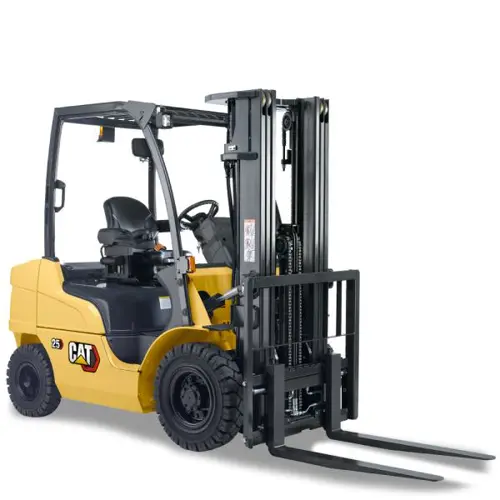

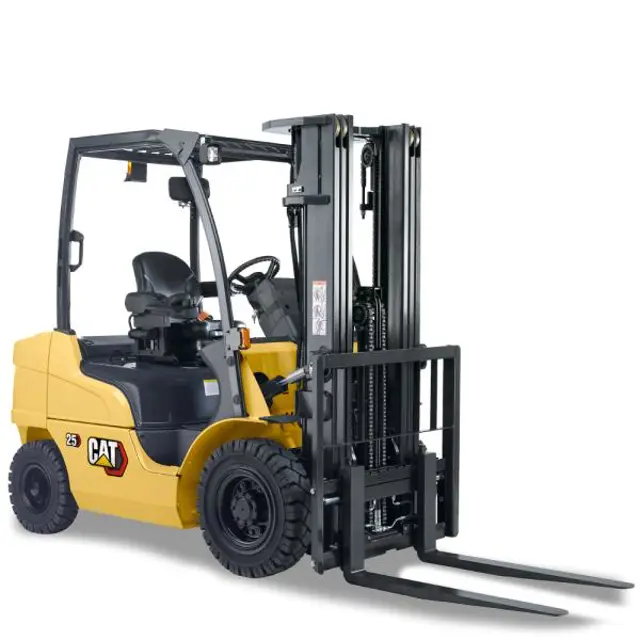

Caterpillar Lift Truck GP40K

CAUTION! After stopping the engine, check and adjust the rotating part. After adjusting the belt, tighten the bracket bolt securely. If the belt is too tight, unnecessary stresses are placed on the alternator bearing and belt. Such stresses will shorten the service life of both. Keep the belt free of oil and grease to reduce the risk of slipping. NOTICE: If it is difficult to adjust or replace the belts, consult your Cat lift truck dealer.

Park the lift truck on a level surface, with the forks lowered, the parking brake applied, the transmission in NEUTRAL, engine stopped and the wheels blocked.

Push the belt downward with about 98 N (10 kgf) [22 lbf] pressure midway between the pulleys as shown.

NOTICE: If the deflection is out of the correct range, readjust the belt. Also, check the belt to make sure that it is not worn, frayed, or has separated piles.

Loosen the alternator bracket bolts (indicated by the black arrows), and move the alternator out or in.

Piping and Piping joints – LP-Gas Check Damage and Gas Leakage

Inspect damage to piping and piping joints.

• The following parts should be periodically changed as noted below.

• These parts are made of materials which will deteriorate as time goes by. Further, it is difficult to determine visually whether or not they are still in good condition.

• Changing at proper intervals will reduce the risk of injury to the operator and damage to the truck.

1. LP-Gas repair kit (Converter and fuel lock filter).

2. Cups and dust seals of the wheel cylinders.

3. Cup and dust seal of the master cylinder.

4. Hydraulic hoses on and around mast.

NOTICE: Periodic changes of these parts are not covered by Warranty.

WARNING! Hot oil and components could cause injury. Do not allow hot oil or components to contact your skin.

Operate the lift truck a few minutes to warm the oil.

Park the lift truck on a level surface with the forks lowered, parking brake applied, transmission in NEUTRAL, engine stopped and the wheels blocked.

Remove the dipstick. Check the oil level.

Enter the oil level reading from the dipstick.

Maintain the correct level range indicated on the dipstick.

Sign off on the oil level check.

WARNING! Hot oil and components could cause serious injury. Do not allow hot oil or components to contact skin.

Operate the lift truck a few minutes to warm the oil.

Park the lift truck on a level surface with the forks lowered, parking brake applied, transmission in NEUTRAL, engine stopped and the wheels blocked.

Remove the drain plug at the side of the engine oil pan. Allow the oil to drain. Clean and put the drain plug back in place.

Fill the crankcase. See Refill Capacities and Lubrication Specifications charts.

Start the engine and allow the oil to fill the filter and passages.

Stop the engine and measure the oil level. Maintain the correct level range on the dipstick.

Park the lift truck on a level surface, parking brake applied, transmission in NEUTRAL, forks lowered, lubricant warm, engine stopped and the wheels blocked.

Lift bracket raised high enough to gain access to the level/fill plug

Blocking used under inner mast to secure the lift bracket in this position

Drain plug and the level/fill plug removed

Oil drained, drain plug cleaned and reinstalled

Amount of oil filled to the bottom of the level/fill hole

Level/fill plug put back in place

Blocking removed, lift bracket lowered

Sign off on the oil replacement
