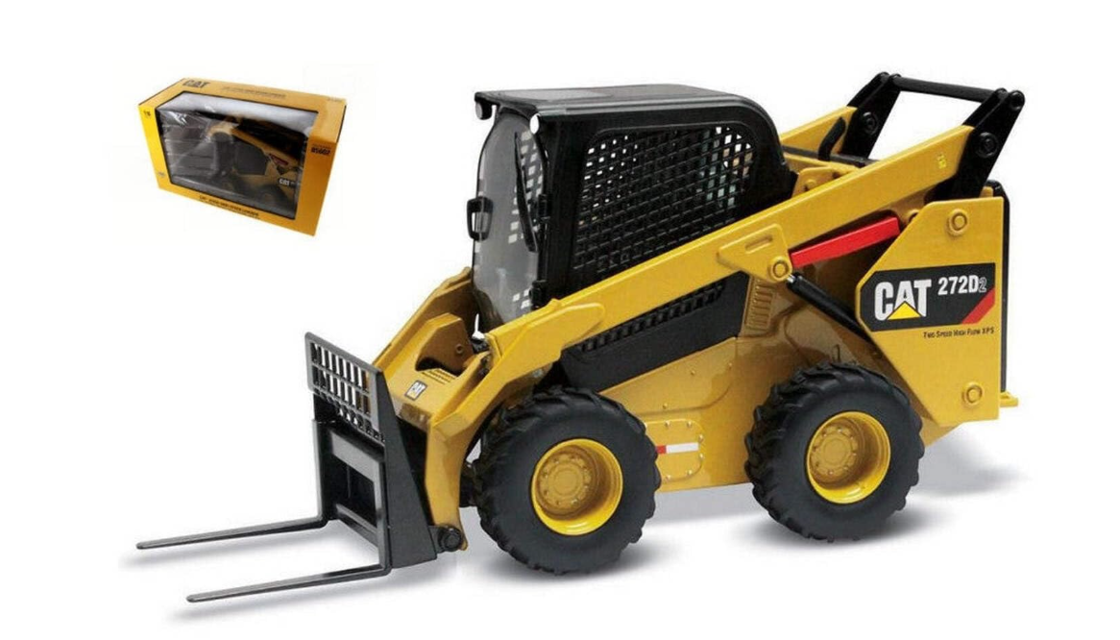

Caterpillar Skid Steer Loader 272D2

Warning: Personal injury can result from hydraulic oil pressure and hot oil. Hydraulic oil pressure can remain in the hydraulic system after the engine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system. Make sure all of the attachments have been lowered, oil is cool before removing any components or lines. Remove the oil filler cap only when the engine is stopped, and the filler cap is cool enough to touch with your bare hand.

Start the engine and allow the engine to run for at least 15 seconds to recharge the accumulator.

Stop the engine. Keep the armrests in the LOWERED position. Turn the engine start switch to the ON position. Push the parking brake switch.

Move the electrohydraulic controls through all the positions.

Toggle the auxiliary switch multiple times.

Turn the engine start switch to the OFF position. The pressure in the hydraulic system has now been released.

Note: Some hydraulic lines on the downstream side of the accumulator may still contain pressurized oil. Use caution when you disconnect these hydraulic lines.

Sign off on the pressure release procedure

Air Cleaner Dust Valve - Clean/Inspect

Bogie and Idler - Inspect/Replace

Engine Compartment - Inspect/Clean

Equipment Lowering Control Valve - Check

Fuel System Primary Filter (Water Separator) Drain

Inspect the track visually for damage or missing fasteners

Replace any grousers that are damaged

Replace any fasteners that are missing

Loosen the greaser with an appropriate wrench or socket to relax the tension on the track

Tighten the greaser and apply grease to achieve proper tension

Check the torque for the track grouser bolts and the master link bolts

1. Stop the engine to replace belt.

2. Open the engine access door. Refer to Operation and Maintenance Manual, Access Doors and Covers.

3. Loosen the quarter-turn fasteners (1) on the front of the belt protection guard, and remove guard to access belt.

4. Loosen the mounting bolt and adjusting bolt, decrease tension in belt.

6. Install new belt. Be sure that the belt is fully seated on the pulleys.

7. Move the alternator until the correct tension 534 ± 22 N·m (120 ± 5 lb) is reached.

Note: A 144-0235 Borroughs Belt Tension Gauge may be used to measure belt tension. This measurement should be taken between the alternator pulley and the crankshaft pulley.

Diesel Exhaust Fluid Filter - Replace

Ensure that the engine is stopped before any servicing or repair is performed.

Ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product.

Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Dispose of all fluids according to local regulations and mandates.

The DEF filter is located on the left side of the machine under the cab. Tilt the cab upward. Refer to the Maintenance Section, “Cab Tilting” for the procedure.

Remove the black plastic cover and then diesel exhaust fluid (DEF) filter assembly, which is shown.

Install new DEF filter. Replace DEF filter cap.

Tilt the cab downward. Refer to Maintenance Section, “Cab Tilting” for the procedure.
