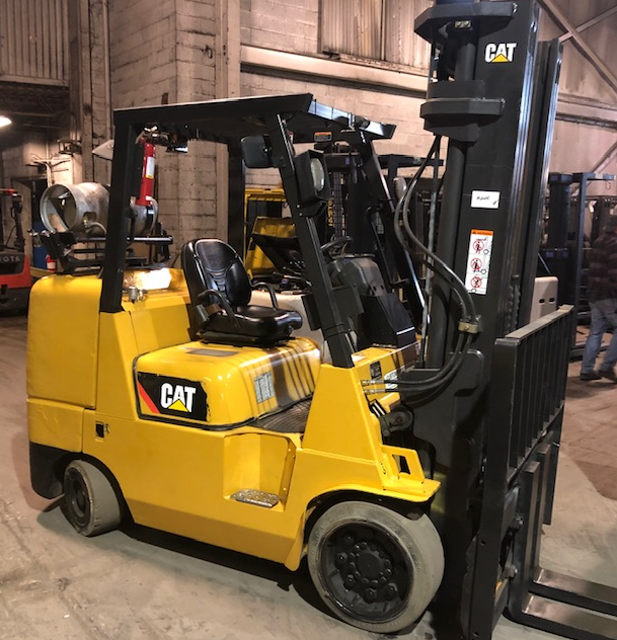

Caterpillar Forklift GC45KSWB

When using compressed air for cleaning, wear an approved face shield and protective clothing.

Use maximum air pressure of 2 kgf/cm2 (30 psi) for cleaning purposes.

Never service the air cleaner with the engine running.

Do not clean the elements by striking them against another object.

Always inspect the element before and after cleaning. Use a light inside the element.

Do not use elements with damaged pleats, gaskets or seals.

Powershift Transmission Change Oil and Wash Strainer

Hydraulic System Change Return Oil Filter and Wash Strainer

Park the lift truck on a level surface, parking brake applied, transmission in NEUTRAL and the engine stopped.

1. Raise the lift bracket high enough to gain access to the level/fill plug.

2. Use blocking under the inner mast to secure the lift bracket in this position.

3. Remove the level/fill plug. Maintain lubricant level to the bottom of the level/fill hole.

4. Clean the level/fill plug and put it back in place.

5. Remove the blocking. Lower the lift bracket.

Powershift transmission Check Oil Level

WARNING: Hot oil and components could cause serious injury. Do not allow hot oil or components to contact your skin.

The engine has been stopped and the filler cap is cool enough to remove with your hand.

Remove the filler cap slowly to relieve pressure.

Park the lift truck with the forks lowered on a level surface parking brake applied, transmission in NEUTRAL and the engine stopped.

1. Operate the lift truck to warm the oil.

2. Park the lift truck with forks lowered, parking brake applied, transmission in NEUTRAL, and engine stopped.

4. Remove the hydraulic tank drain plug. Allow the oil to drain. Clean and put the plug back in place.

Hydraulic tank return oil filter

– Bolts and nuts of overhead guard should be retightened.;
