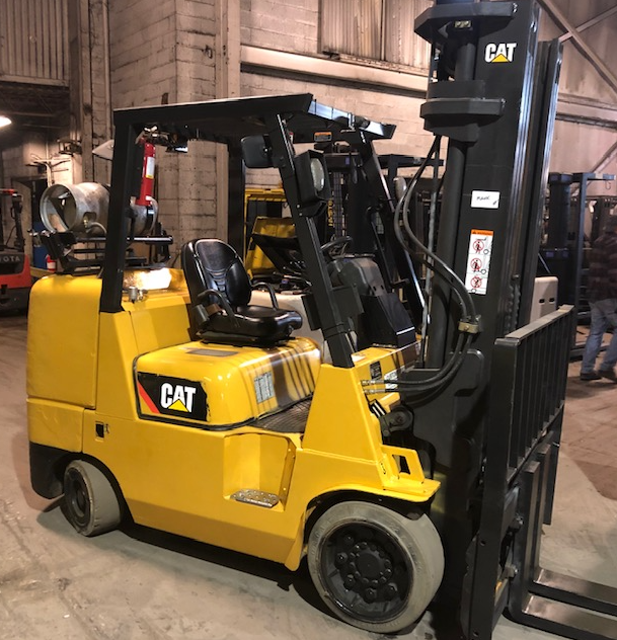

Caterpillar Forklift GC45K-STR

Check Damaged or faulty operation found the day before

Check Oil, fuel or coolant leaks

Check Tilt cylinder socket bolts

Warning: When using compressed air for cleaning, wear an approved face shield and protective clothing. Use maximum air pressure of 2 kgf/cm2 (30 psi) for cleaning purposes.

Notice: Never service the air cleaner with the engine running. Do not clean the elements by striking them against another object. Always inspect the element before and after cleaning. Use a light inside the element. Do not use elements with damaged pleats, gaskets or seals.

Park the lift truck on a level surface, with the forks lowered, the parking brake applied, the transmission in NEUTRAL and the engine stopped.

Caution: Install the dust pan with its arrow mark up.

Removed the dust pan by releasing the latches at three places?

Unscrewed the wing nut, and removed the element by pulling it?

Removed the cover from the dust pan, and cleaned the inside of the pan by removing dust?

Cleaned the inside of the air cleaner housing?

Replace hydraulic tank return oil filter

Retighten bolts and nuts of overhead guard

Lift truck parked on a level surface, parking brake applied, transmission in NEUTRAL and the engine stopped

Lift bracket raised high enough to gain access to the level/fill plug

Blocking used under the inner mast to secure the lift bracket in this position

Level/fill plug removed and lubricant level maintained to the bottom of the level/fill hole

Level/fill plug cleaned and put back in place

Blocking removed and lift bracket lowered

Powershift transmission oil level checked

WARNING: Hot oil and components could cause serious injury. Do not allow hot oil or components to contact your skin.

NOTICE: When changing fluid consult with your Cat lift truck dealer.

Parts to be Changed Periodically

2400 service hours or 1 year, whichever comes first

2400 to 4800 service hours or 1 to 2 years, whichever comes first

4800 service hours or 2 years, which ever comes first
