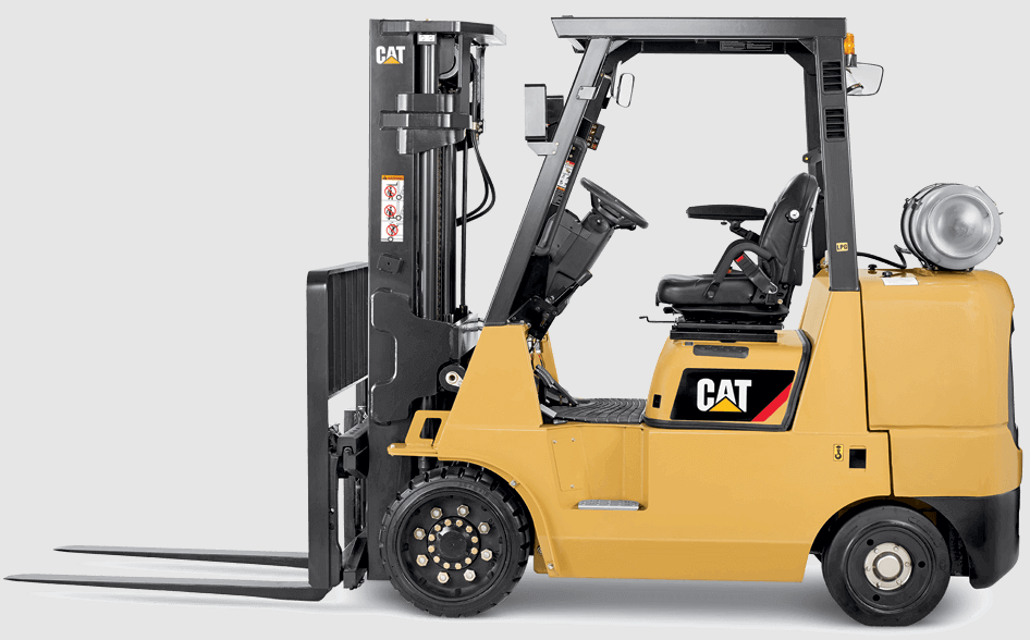

Caterpillar Forklift GC35K

Park the lift truck on a level surface, parking brake applied, transmission in NEUTRAL and the engine stopped.

1. Raise the lift bracket high enough to gain access to the level/fill plug.

2. Use blocking under the inner mast to secure the lift bracket in this position.

3. Remove the level/fill plug. Maintain lubricant level to the bottom of the level/fill hole.

4. Clean the level/fill plug and put it back in place.

5. Remove the blocking. Lower the lift bracket.

Powershift transmission Check Oil Level

Powershift Transmission Change Oil and Wash Strainer

Hydraulic System Change Return Oil Filter and Wash Strainer

Check Damaged or faulty operation found the day before

Check Oil, fuel or coolant leaks

Check Tilt cylinder socket bolts

WARNING: Hot oil and components could cause serious injury. Do not allow hot oil or components to contact your skin.

The engine has been stopped and the filler cap is cool enough to remove with your hand.

Remove the filler cap slowly to relieve pressure.

Park the lift truck with the forks lowered on a level surface parking brake applied, transmission in NEUTRAL and the engine stopped.

Operate the lift truck to warm the oil.

Park the lift truck with forks lowered, parking brake applied, transmission in NEUTRAL, and engine stopped.

Remove the hydraulic tank drain plug. Allow the oil to drain. Clean and put the plug back in place.

Replace hydraulic tank return oil filter

Retighten bolts and nuts of overhead guard
