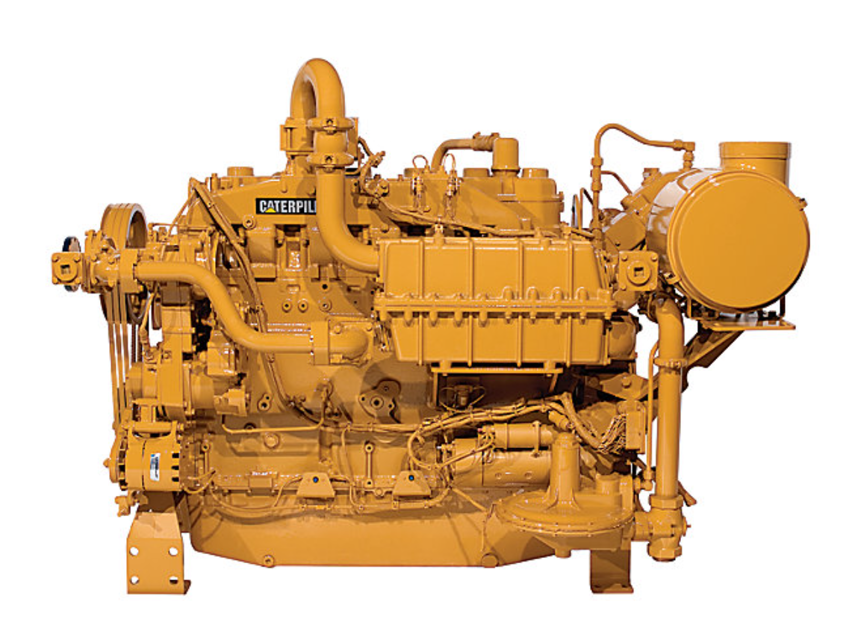

Caterpillar Engine 3304

Need answers fast?
Explore the manual using AI.

Caterpillar Engine 3304
Caterpillar Engine 3304

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Caterpillar Engine 3304

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Caterpillar Engine 3304

Caterpillar Engine 3304

Create an account to install this asset package.

Maintenance Plans for Caterpillar Engine Model 3304

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly Engine Maintenance

Check mark

Engine Crankcase (N. A. Engine)-Change Oil and filter

Check mark

Change oil, filter and clean breather. See Item (13) for details.

Check mark

Fan Bearing

Check mark

Lubricate 1 fitting.

Check mark

Fuel System

Check mark

The primary fuel filter should be cleaned and the final fuel filter element replaced every 500 service hours of operation or when the fuel gauge registers "OUT" with the engine running.

Check mark

Refer to "Fuel System" in "When Required" section for procedure to change the fuel filters.

Check mark

Sign off on the 500 Hourly Engine Maintenance

Run this procedureArrow right

Engine Maintenance

Check mark

WARNING: At Operating Temperature, engine coolant is hot and under pressure. Steam can cause personal injury.

Check mark

CAUTION: If the engine is to be stored in, or shipped to, an area with below freezing temperatures, the cooling system must either be protected to the lowest expected ambient temperature, or drained completely.

Check mark

Never add coolant to an overheated engine, allow engine to cool first.

Check mark

Do not use Caterpillar Cooling System Conditioner or Coolant Conditioner Elements with Dowtherm 209 Full-Fill coolant.

Check mark

Loosen radiator cap slowly to release pressure and remove filler cap.

Check mark

Remove radiator drain plug.

Check mark

Remove the engine block drain plug.

Check mark

WARNING: Use all cleaning solutions with care.

Check mark

Install drain plugs. Fill system with a commercially available cleaning solution or 1 kilogram (2 lb.) Sodium Bisulfate (NaHSO.) per 40 liters (10 U.S. gallons) water.

Run this procedureArrow right

50 Hourly Engine Maintenance

Check mark

Dust Collector Cup-Clean

Check mark

1. Remove the retaining wing nut from the top of the dust collector cup.

Check mark

2. Remove and clean the dust collector cup.

Check mark

3. Install the dust collector cup.

Check mark

Batteries-Check Electrolyte Level

Check mark

WARNING: Do not smoke when observing battery electrolyte level. Batteries give off fumes that can explode.

Check mark

WARNING: Electrolyte is an acid and can cause personal injury if it contacts skin or eyes.

Check mark

1. Clean the tops of the batteries. Keep the terminals clean and covered with a light coat of grease.

Check mark

2. Remove all fill caps. Observe the electrolyte level.

Run this procedureArrow right

10 Hourly Engine Maintenance

Check mark

Engine Crankcase

Check mark

1. Measure oil level. Oil should be between the FULL and ADD marks on the "Running" side of the dipstick.

Check mark

2. Add oil if necessary.

Check mark

Air Cleaner Indicator

Check mark

Inspect the air cleaner indicator. If the red piston is locked in the raised position, service the air cleaner.

Check mark

Fuel Tank

Check mark

Drain water and sediment.

Check mark

Water Separator-Drain

Check mark

CAUTION: The engine should never be allowed to run with the water level in the element more than 1/2 full or engine damage may result.

Run this procedureArrow right

1000 Hourly Engine Maintenance

Check mark

Woodward PSG Governor

Check mark

Lubricate 2 fittings

Check mark

Synchronizing Motor

Check mark

Fill oil cup

Check mark

Shutoff Controls

Check mark

The shutoff controls must be checked periodically so that they will function properly, when required. To prevent damage to the engine while making the required test, only authorized personnel should perform the checks. Contact your Caterpillar dealer.

Check mark

Tachometer Drive

Check mark

Lubricate 1 fitting

Check mark

Sign off on the 1000 Hourly Engine Maintenance

Run this procedureArrow right

Parts for Caterpillar Engine 3304

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Engine Turning Tool

5P7307

Engine Turning Tool

5P7307

Engine Turning Tool

5P7307
