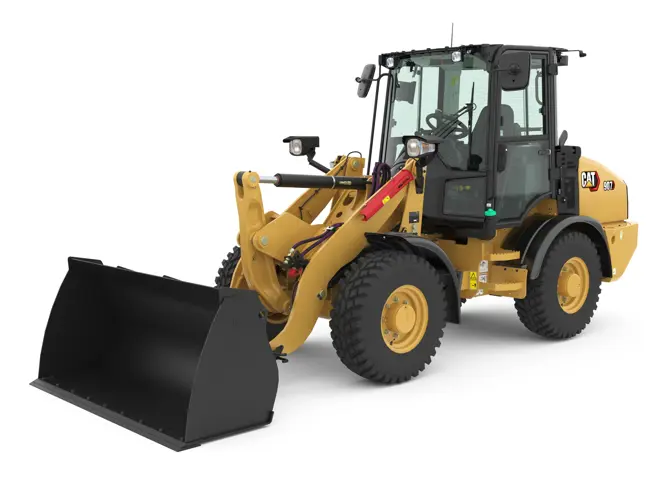

Caterpillar Compact Wheel Loader 907M

- Check DEF Injector every 5000 hours

- Add Engine Coolant Extender 0.34 L (0.09 gal) (depending on S•O•SSM Coolant Sampling Results) every 6000 hours

- Check DEF Manifold Filter Element every 10000 Hours

- Change Engine Collant 17 L (4.49 gal) every 12000 Hours;

- Change Hydraulic Oil. Hydo Advanced Quantity: 70 L (18.49 gal)

- Change Brake Fluid (if equipped). 0.2 L (0.05 gal);

Sign off on the 3000 Hours Loader Maintenance

- Change Transfer Drive Oil. Sampling Only

- Change Front Differential and Final Drive Oil. Sampling Only

- Change Rear Differential and Final Drive Oil. Sampling Only

- Change Engine Oil / Filter Element. 11.2 L (2.96 gal)

- Lubricate Machine with Prime Application Grease

- Change Hydraulic Filter Element;

Enter the amount of oil used for Transfer Drive. Expected: 1.3 L (0.34 gal)

Change Front Differential and Final Drive Oil

Enter the amount of oil used for Front Differential. Expected: 8 L (2.11 gal)

Enter the amount of oil used for each Front Final Drive Hub. Expected: 0.8 L (0.21 gal)

Change Rear Differential and Final Drive Oil

Enter the amount of oil used for Rear Differential. Expected: 8 L (2.11 gal)

Enter the amount of oil used for each Rear Final Drive Hub. Expected: 0.8 L (0.21 gal)

Sign off on the maintenance procedure
