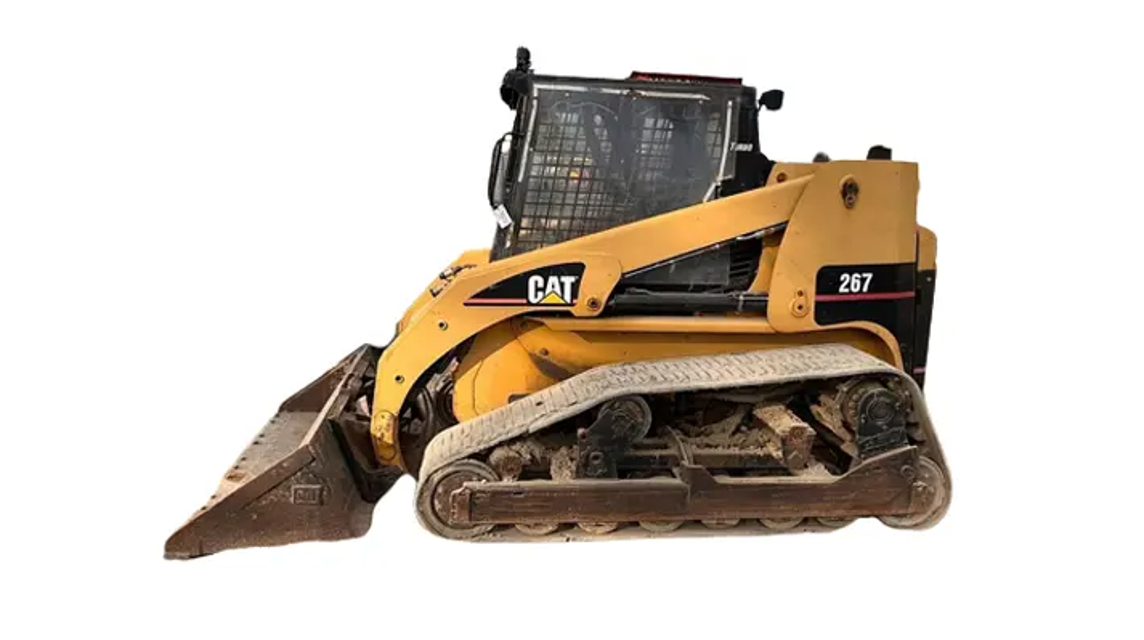

Caterpillar Compact Track Loader 267

Bogie and Idler Oil Level - Check

Steps to check Bogie and Idler Oil Level

Steps to change Hydraulic System Oil

Steps to lubricate Sprocket Bearings

Sign off on the maintenance procedure

WARNING: Personal injury can result from contact with refrigerant. Contact with refrigerant can cause frost bite. Keep face and hands away to help prevent injury. Protective goggles must always be worn when refrigerant lines are opened, even if the gauges indicate the system is empty of refrigerant. Always use precaution when a fitting is removed. Slowly loosen the fitting. If the system is still under pressure, release it slowly in a well ventilated area.

Personal injury or death can result from inhaling refrigerant through a lit cigarette. Inhaling air conditioner refrigerant gas through a lit cigarette or other smoking method or inhaling fumes released from a flame contacting air conditioner refrigerant gas, can cause bodily harm or death. Do not smoke when servicing air conditioners or wherever refrigerant gas may be present.

NOTICE: If the refrigerant system has been open to the outside air (without being plugged) for more than 30 minutes, the receiver-dryer must be replaced. Moisture will enter an open refrigerant system and cause corrosion which will lead to component failure.

Refer to Service Manual, SENR5664, “Air Conditioning and Heating R-134a For All Caterpillar Machines” for the proper procedure to change the receiver-dryer assembly and for the procedure to reclaim the refrigerant gas.

Note: The receiver-dryer must also be replaced when the air conditioning system is evacuated.

Did you replace the Refrigerant Dryer?

Did you follow all safety precautions?

Sign off on the maintenance procedure

WARNING: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

When a Caterpillar Extended Life Coolant is used, an extender must be added to the cooling system periodically.

Open the engine access door. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

Tilt the radiator guard upward. Refer to Operation and Maintenance Manual, “Radiator Tilting”.

Slowly loosen the radiator cap in order to relieve system pressure. Remove the radiator cap.

If necessary, drain enough coolant from the radiator in order to allow the addition of the coolant additive.

Add 0.17 L (0.18 qt) of cooling system additive.

Inspect the radiator cap and the gasket. If the cap or the gasket is damaged, replace the cap. Install the radiator cap.

Check the coolant level in the sight gauge on the radiator. The sight gauge is located on the right side of the radiator. Maintain the coolant level to the top of the sight gauge with the radiator in the LOWERED position.

Engine Crankcase Breather (Closed Circuit) - Replace

NOTICE: Ensure that the breather pipe connections are tight. Do not overfill the engine cranckcase. If there is too much oil in the crankcase oil may enter the breather. Oil entering the breather may cause the engine speed to increase rapidly without control.

Sign off on the breather replacement

Hydraulic System Oil Filter - Replace
