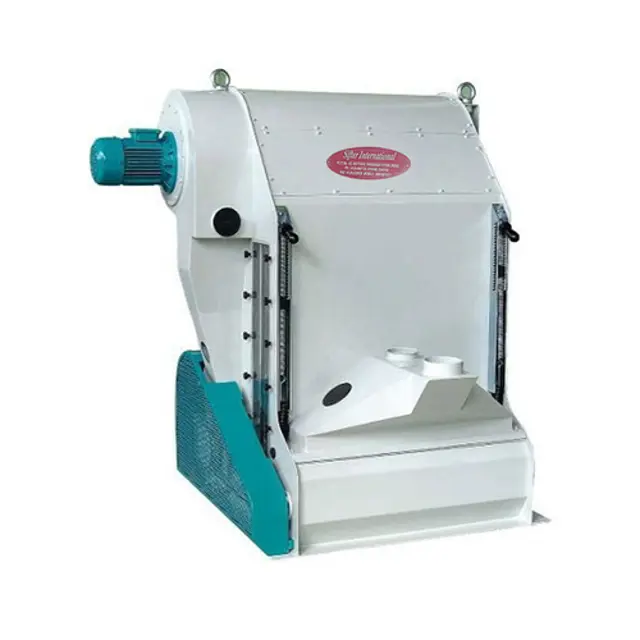

Buhler Air Recirculating Aspirator MVSQ-60-Ex

Warning: Maintenance of the machine may only be carried out by suitably qualified and authorised personnel.

Danger: Perform all maintenance, cleaning, and inspection work only when the machine is at a standstill.

Ensure all machine movements are completely stopped.

Set the all-pole disconnecting and lockable safety switch to “0” and lock it.

Caution: A prerequisite for safe and trouble-free operation is that maintenance work is carried out correctly.

Belt (Fig. 4.1, pos. 1): Ea = 20 mm

Belt (Fig. 4.1, pos. 2): Ea = 30 mm

Caution! Maintenance of the machine may only be carried out by suitably qualified and authorized personnel

Danger! Perform all maintenance, cleaning, and inspection work only when the machine is at a standstill

Ensure all machine movements are completely stopped

Set the all-pole disconnecting and lockable safety switch to “0” and lock it

Caution! A prerequisite for safe and trouble-free operation is that maintenance work is carried out correctly

If the machine is used in an Ex zone, the maximum permissible surface temperature according to the ATEX designation must be observed

Upload the motor manufacturer’s instruction manual

Sign off on the motors lubrication

Warning: Maintenance of the machine may only be carried out by suitably qualified and authorised personnel.

Danger: Perform all maintenance, cleaning, and inspection work only when the machine is at a standstill.

Caution: A prerequisite for safe and trouble-free operation is that maintenance work is carried out correctly.

Check and adjust if necessary finger flaps

Check and lubricate adjusting spindles

Ensure dust-free operation of the machine

Check the finger flaps (8) and (9) to make sure they just close without any product

Check the distance (X) between the feed box (1) and the rubber plate on the joggle shoe (2)

Ensure that the discharge slot (X) is parallel across the entire width

Check the lamellae (4) of the separator (5) for dust and clean if necessary

The lamellae can be reached by opening and pulling down the baffle plate (6) or inspection cover (7)

Maintenance of the machine may only be carried out by suitably qualified and authorised personnel

Perform all maintenance, cleaning, and inspection work only when the machine is at a standstill

Ensure all machine movements are completely stopped

Set the all-pole disconnecting and lockable safety switch to “0” and lock it
