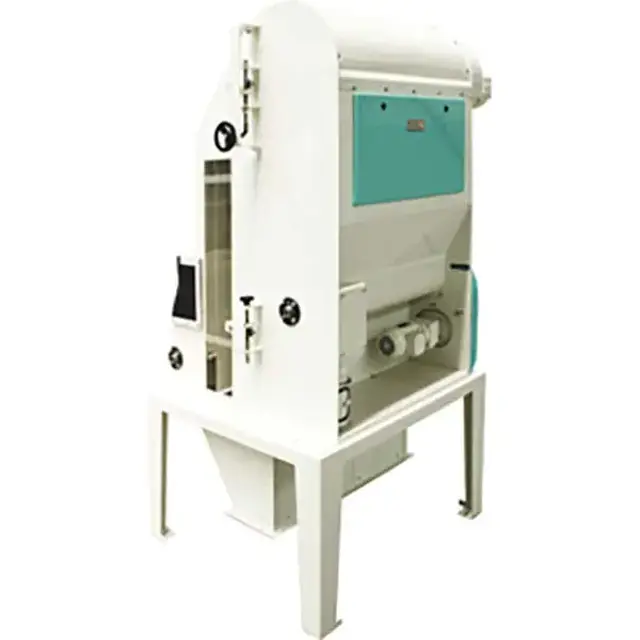

Buhler Air-Recycling Aspiration Channel MVSR-150

Warning: Ensure the machine is secured and cannot start up unexpectedly to avoid severe injuries.

Safety switch is set to <0> and locked

Key is removed and kept with you

Lubricate the adjusting spindle at the top

Lubricate the adjusting spindle at the bottom

For drive motor, refer to the documentation provided by the motor supplier.

Sign off on the aspiration channel lubrication

- Check the function of the discharge flap.

If the machine starts up unexpectedly, individuals working on the machine could be injured severely.

- Set the safety switch to <0> and lock it.

- Remove the key and keep it with you.

- Check the function of the finger flaps.

Warning: If the machine starts up unexpectedly, individuals working on the machine could be injured severely.

Set the safety switch to <0> and lock it.

Remove the key and keep it with you.

Remove dust, dirt or product depositions with a dry cleaning cloth, brush or vacuum cleaner.

Sign off on the aspiration channel cleaning

Warning: Ensure the machine is secured and cannot start up unexpectedly to avoid severe injuries.

Prerequisites: Product feed is interrupted. The safety switch is set to <0> and locked. The key is removed and kept with you.

Safety switch set to <0> and locked?

2 fasteners opened and guide sheet removed?

Guide sheet fitted and 2 fasteners closed?

- Check the stress of the V-belts, tensioning them if necessary.; Checking V-belts

If the machine starts up unexpectedly, individuals working on the machine could be injured severely.

- Set the safety switch to <0> and lock it.

- Remove the key and keep it with you.

Correct V-belt stress is important for safe operation.

► Excessively slack V-belts will grind and heat up. Excessive heating is prohibited in hazardous areas.

► V-belts that are too taut put excessive load on the bearings and lead to bearing damage.
