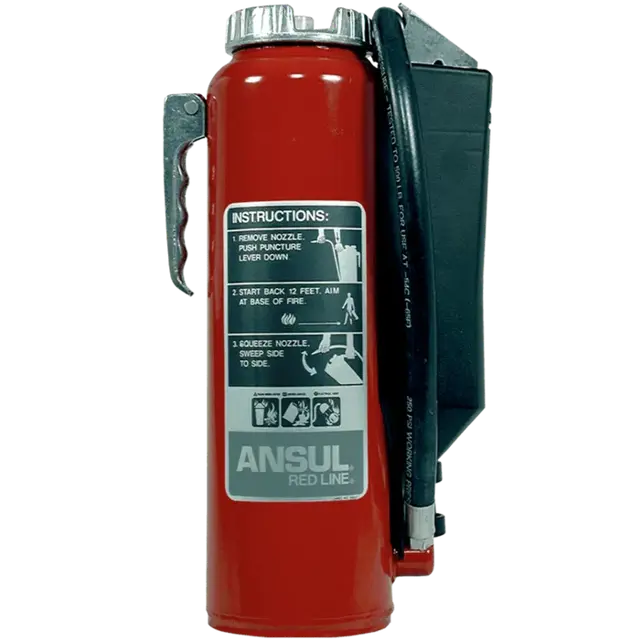

Ansul Fire Extinguisher 10

Depress nozzle handle and remove nozzle tip

Remove the handle rivet head by using a 3/8 inch drill bit

Remove handle, caplugs, and spring

Remove old plunger and replace with new plunger

Reassemble handle, caplugs and spring onto nozzle body, ensuring plunger stem fits into groove in handle

Install new rivet through handle and nozzle body, then peen rivet

Operate nozzle handle to ensure free movement of plunger assembly

Squeeze nozzle handle and thread nozzle tip into nozzle body. Screw the nozzle tip until it seats against the plunger. Depress the handle and continue to turn clockwise for 1/2 to 3/4 turn

Install nozzle assembly onto agent hose and pressure test to 250 psi (17.24 bar)

Clean any dirt, ice, or other foreign material from the extinguisher and bracket

Remove the extinguisher from the bracket and clean the extinguisher surface where the bracket pads contact it

Examine the bracket pads which hold the extinguisher in place. Clean the pad surfaces to maintain their gripping power on the extinguisher. Check the pads for resiliency, and replace if necessary

Inspect the bracket. If it has been bent, replace it. If it has been cracked, repair or replace it

If any welding is performed, take steps to protect the bracket pads from excessive heat

Grease each moving part of the bracket arm and test its action. The bracket must be able to hold the extinguisher firmly, but release easily when necessary

Check to see that the bracket is firmly mounted. Tighten or replace mounting fasteners, or re-weld connections as needed

Avoid possible rust damage by cleaning and painting wherever bare steel is exposed

Following extinguisher maintenance, secure the extinguisher in its bracket. If the bracket does not hold the extinguisher securely or the bracket is difficult to close, replace the affected part and/or bracket

Before proceeding to recharge any extinguisher, visually examine the unit for any physical damage or impairment which may further dictate the need for maintenance.

Extinguisher visually inspected for any physical damage or impairment?

Extinguishers out of service for maintenance or recharge shall be replaced by spare extinguishers of the same type and at least equal rating.

Invert the extinguisher and open nozzle to clear dry chemical from hose and to relieve all pressure remaining in shell.

Return the extinguisher to the upright position.

Remove the cartridge guard and spent cartridge.

Do not install cartridge onto extinguisher at this time.

Remove fill cap slowly and deliberately.

If extinguisher contains optional hose seal, install a new seal.

Cartridge removed from extinguisher

Retaining roll pin removed from lever

Old puncture pin removed by pushing downward

Roll pin installed in reverse procedure

Puncture pin travels freely by operating the lever

Extinguisher is in its designated place, is clearly visible and is accessible for immediate use

Visual seal on the cartridge receiver and tamper-proof seal on the fill cap are intact

Red indicator stem on Ansul indicator fill cap models is not up

Extinguisher feels filled when lifted up and down slightly

Extinguisher shell, cartridge guard, cartridge receiver and all other external parts show no evidence of physical damage, corrosion or other impairments

Nameplate, especially the operating instructions, is readable

Hose shows no cuts, severe weather checking, abrasion or deformed exterior

Hose couplings show no looseness, corrosion or cracks

Nozzle tip and handle show no obvious damage or obstructions
