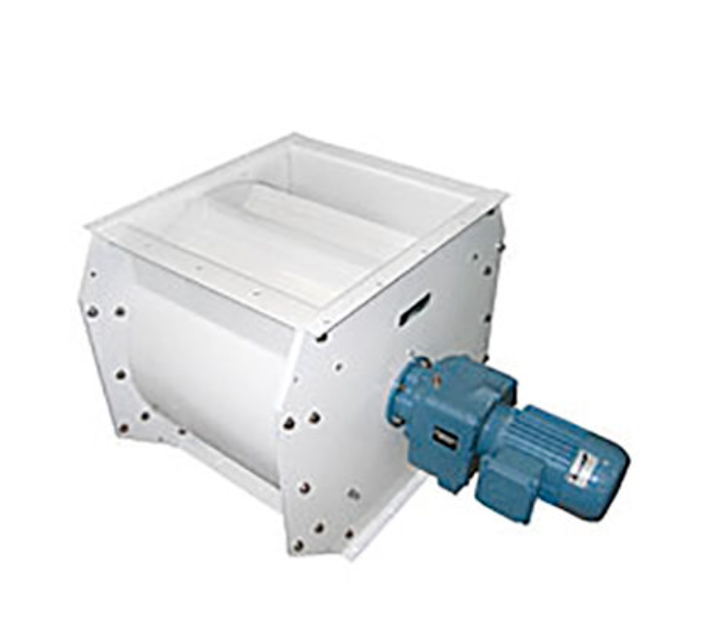

Buhler Proportioning Bucket Wheel MZDH-62/50-54
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Buhler Proportioning Bucket Wheel MZDH-62/50-54
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Buhler Proportioning Bucket Wheel MZDH-62/50-54
Create an account to install this asset package.
Maintenance Plans for Buhler Proportioning Bucket Wheel Model MZDH-62/50-54
Integrate maintenance plans directly into your work orders in MaintainX.
Flange Bearing Replacing
Machine movements stopped and safety switch set to “0”
Supply of compressed air interrupted
Protective cap (1) removed
4 screws (2) removed
Locking screw (4) loosened
Flange bearing (3) removed
New flange bearing inserted
Flange bearing screwed down with 4 screws
Locking screw tightened
Spur Gear Motor Replacing
Machine movements stopped and safety switch set to “0”
Supply of compressed air interrupted if present
Number of screws removed
Spur gear motor turned a little and screws into intermediate ring
Spur gear motor and intermediate ring forced off housing panel
Spur gear motor pulled out of rotor
Intermediate ring removed from spur gear motor
Intermediate ring seal checked for damage and correct insertion
Installation paste applied to hole of rotor and motor shaft
Air Flushing's Garlock Seal Replacing
Replacing seal in intermediate ring on flange bearing side
1. Set the safety switch to “0” and lock it. Remove the key and keep it with you.
2. Interrupt the supply of compressed air.
3. Remove protective cap (1).
4. Remove 4 screws (2).
5. Loosen the locking screw (4).
6. Remove flange bearing (3).
7. Remove seal (5) and insert new one.
► Ensure that opening (A) in seal is facing the machine.
Housing Maintenance
Machine movements stopped and safety switch set to “0”
Supply of compressed air interrupted
Number of screws removed
Spur gear motor turned and screws inserted into intermediate ring
Spur gear motor and intermediate ring forced off housing panel
Spur gear motor pulled out of rotor
Intermediate ring removed from spur gear motor
Intermediate ring seal checked for damage and correct insertion
Protective cap removed
Unlock efficiency
