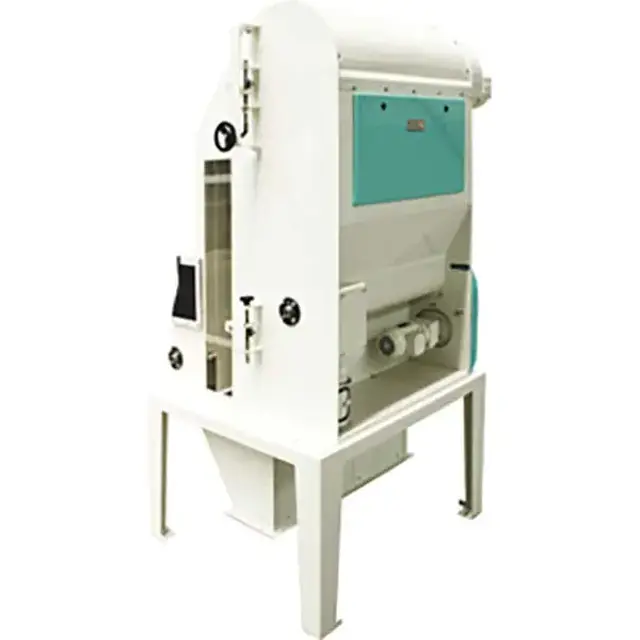

Buhler Air-Recycling Aspiration Channel MVSR-100

- Check the function of the discharge flap.

If the machine starts up unexpectedly, individuals working on the machine could be injured severely.

- Set the safety switch to <0> and lock it.

- Remove the key and keep it with you.

- Check the function of the finger flaps.

Warning: If the machine starts up unexpectedly, individuals working on the machine could be injured severely.

Set the safety switch to <0> and lock it.

Remove the key and keep it with you.

Important: Correct V-belt stress is important for safe operation.

Excessively slack V-belts will grind and heat up. Excessive heating is prohibited in hazardous areas.

V-belts that are too taut put excessive load on the bearings and lead to bearing damage.

Check the stress of the V-belts, tensioning them if necessary.

Ensure that the depths of impression are achieved with a test load (F) of 25 N per V-belt.

Warning: If the machine starts up unexpectedly, individuals working on the machine could be injured severely.

Set the safety switch to <0> and lock it.

Remove the key and keep it with you.

Remove dust, dirt or product depositions with a dry cleaning cloth, brush or vacuum cleaner.

Sign off on the aspiration channel cleaning

Warning: Ensure the machine is secured and cannot start up unexpectedly to avoid severe injuries.

Safety switch is set to <0> and locked

Key is removed and kept with you

2 fasteners (2) are opened and the guide sheet (1) is removed

Cutter louvres (1) are dedusted

Guide sheet (1) is fitted and the 2 fasteners (2) are closed

Warning: For trained personnel only

The machine is secured so that it cannot be started up unexpectedly

Set the safety switch to <0> and lock it

Remove the key and keep it with you

Lubricate the adjusting spindle at the top

Lubricate the adjusting spindle at the bottom

For drive motor see the documentation provided by the motor supplier
