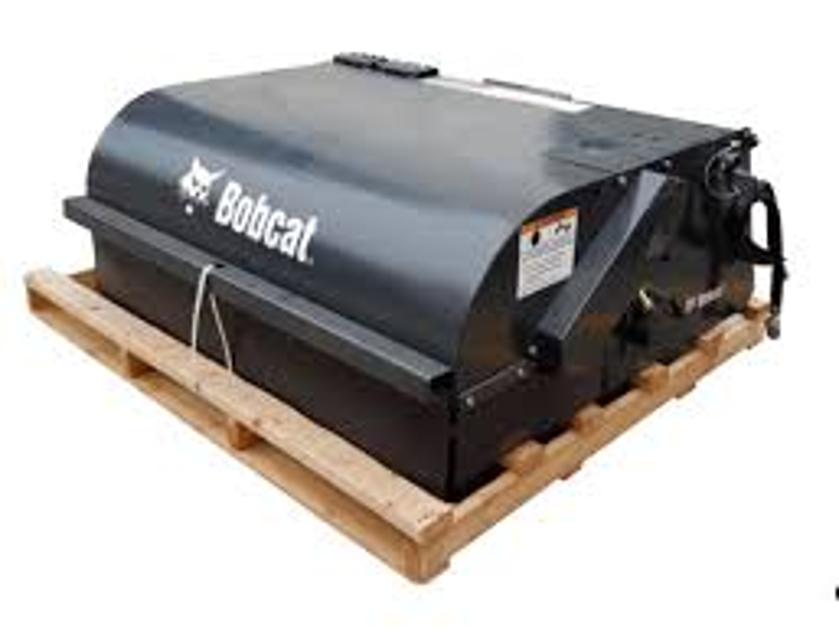

Bobcat Sweeper Atachment Sweeper 54 inch

WARNING: Bob-Tach wedges must extend through the holes in attachment. Levers must be fully down and locked. Failure to secure wedges can allow attachment to come off and cause injury or death.

Move the Bob-Tach levers to engage the wedges. The levers and wedges must move freely.

The wedges must extend through the holes in the attachment mounting frame.

The spring loaded wedge must contact the lower edge of the hole in the attachment.

If the wedge does not contact the lower edge of the hole, the attachment will be loose and can come off the Bob-Tach.

Inspect the mounting frame on the attachment and the Bob-Tach, linkages and wedges for excessive wear or damage. Replace any parts that are damaged or worn. Keep all fasteners tight.

Look for cracked welds. Contact your Bobcat dealer for repair or replacement parts.

Sign off on the Hand Lever Bob-Tach Inspection

Push and hold the Bob-tach “wedges Up” switch until wedges are fully raised

Push and hold the Bob-tach “wedges Down” switch until the wedges are fully down

Check if the wedges extend through the holes in the attachment mounting frame and contact the lower edge of the hole in the attachment

Inspect the mounting frame on the attachment and the Bob-Tach, linkages and wedges for excessive wear or damage

Upload a photo of any damaged parts

Inspect the hoses and fittings for leaks

Contact your Bobcat Dealer for repair or replacement parts

Raise the sweeper cutting edge above ground level

Loosen the lock nut (Item 1) on the adjustment bolt (Item 2)

Turn the adjustment bolts (on both sides) in or out until the broom bristles have a 1–2 inch; (24.5–51 mm) gap between the bristles and cutting edge

The bristles and cutting edge will wear, so check and adjust regularly

Sign off on the sweeper maintenance

As the brush wears, the brush will need to be lowered to keep the same angle.

Remove the nut (Item 1) [Figure PM-23].

Hold the pivot arm (Item 2) [Figure PM-23] remove the pivot pin (Item 3) [Figure PM-23].

Lower the arm to the next hole.

Install the pin, nut and tighten.

Sign off on the gutter brush maintenance

Remove the bolts (Item 1) [Figure PM-19] from the chain cover

Remove the bolts (Item 1) [Figure PM-20] from the motor cover and remove the cover

Loosen the motor bolts (Item 2) [Figure PM-21] and the adjustment bolt (Item 1) [Figure PM-21]

Move the hydraulic motor until the drive chain has 1/4 inch (6 mm) deflection at the middle of the chain [Figure PM-21]

Tighten motor bolts and adjustment bolt

Install the chain cover, install the bolts and tighten
