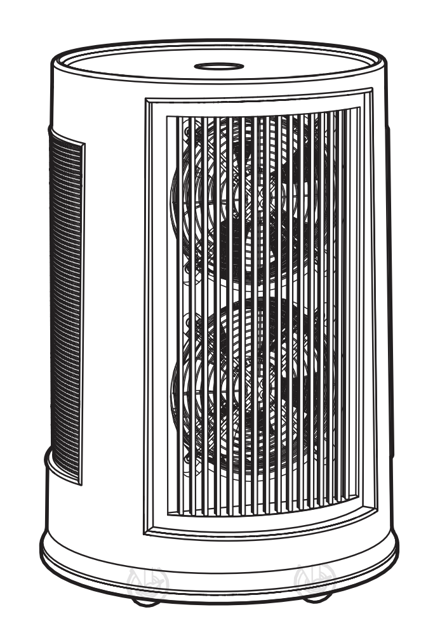

Big Ass Fans Evaporative Cooler Cold Front 100

• Remove the cooling media and clean out any debris in the water pan at the bottom of the cooler.

• Remove the distribution tube from the mounting clips. Remove the plug at the end of the tube and flush out. Clean the distribution holes with a small brush and flush with water to verify all holes are clear.

• If the cooling media is heavily stained with minerals or is damaged, replace the media. Replacement cooling media is available at bigassfans.com. Verify the media is installed correctly with the arrows on the side.

• Connect the water line and turn on the water supply. Check the float valve and make sure it is operating properly. Verify that the float valve is shutting the water off before walking away.

• Switch on the fan motor and pump. Make sure the cooling media is being evenly saturated with water by using the flow control valve to adjust the water flow. Small dry streaks are acceptable.

• Make sure the float valve is working properly. If the valve sticks, the water will run continuously and flood the reservoir. If this occurs, install a new float valve or contact Customer Service.

• Check all other working parts for cracks or damage, including the pump, fan motor, and fan belt.

• Use a 12 gauge cord if the cord is under 50 ft (15 m) or a 10 gauge cord if the cord is over 50 ft (15 m).

• Provide fresh air intake for the cooler and maintain a minimum clearance of 3 ft (0.9 m) behind the cooler.

3. Run the cooler without the fan running for 5 hours.

WARNING ELECTRICAL SHOCK HAZARD: Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death.

Turn off the pump about 15 minutes before the fan is turned off to allow the pads to drain and dry out.

Drain the water from the cooler if it will be unused for a prolonged period of time.

Sign off on the daily cooler maintenance

Repairs should be performed by a qualified technician!

WARNING ELECTRICAL SHOCK HAZARD

Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death.

2. Remove black motor wiring plate and disconnect motor wires. Mark each wire with a marker or marker tape for easy matching when installing new motor.

WARNING ELECTRICAL SHOCK HAZARD

Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death.

Remove the cooling pads to access the inside of the cooler.

1. Remove pad grilles from support channel.

2. Tilt pads from the top and lift out of the cooler.

Drain and clean the cooler weekly. Remove the cooling media and wash with a garden hose.;
