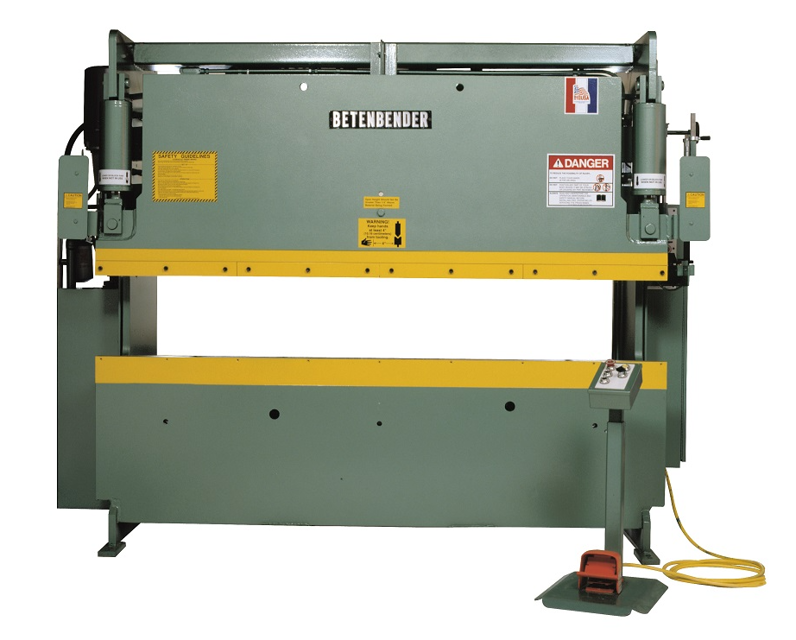

Betenbender Manufacturing Press Brake Machine 8'-95T

Observe all operational parts for proper performance

Check electrical foot switch before use

Remove foot switch from operating area when not in use

Repair or replace loose cap screws and nuts

Was the return line filter changed during the previous year?

Change return line filter if not changed during the previous year

Suction Line Strainer Maintenance

Grease the two zerks on each end of the gibs at 8 hours of running time intervals.

One-Shot Lubrication (Optional)

Is the machine under normal usage?

Manually pump grease into the machine using the grease pump attached to the lube station.

Is the machine under extended usage?

Operate the one-shot grease pump every 8 hours of running time.

Automatic Lubrication (Optional)

Is the machine under normal usage?

Inspect all lines and fittings for leaks

Inspect piston rods for leaks or scoring of surface

Inspect manifold block and replace any leaking 'O' rings

Turn off power and lock MAIN DISCONNECT switch

Inspect all connections for any loose connections

JOG ram down to the bottom of the stroke. Hold switch, read pressure.

Enter the pressure reading in psi

Is the pressure within the maximum limit of 2,500 psi?
