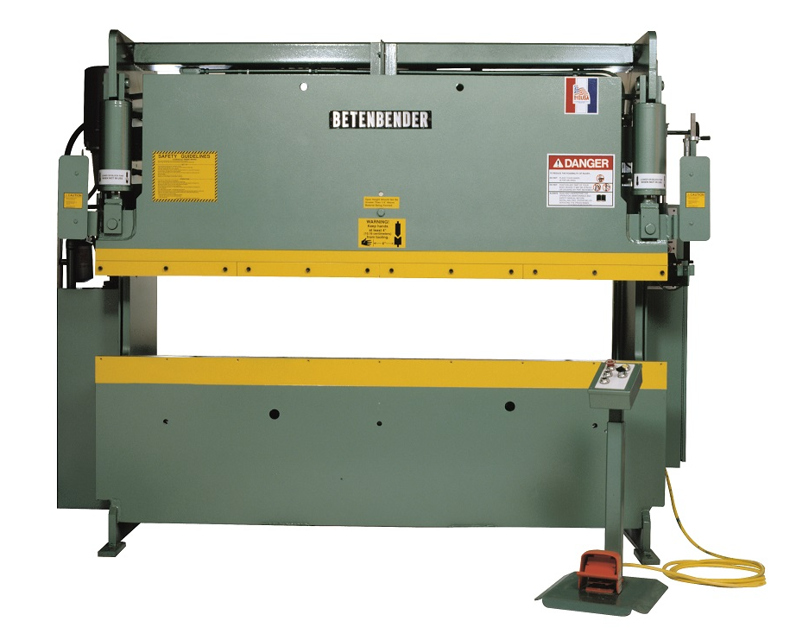

Betenbender Manufacturing Press Brake Machine 10'-70T

Observe all operational parts for proper performance

Check electrical foot switch before use

Grease the two zerks on each end of the gibs at 8 hours of running time intervals.

One-Shot Lubrication (Optional)

Is the machine under normal usage?

Manually pump grease into the machine using the grease pump attached to the lube station.

Is the machine under extended usage?

Operate the one-shot grease pump every 8 hours of running time.

Automatic Lubrication (Optional)

Is the machine under normal usage?

Drain a pint of oil from the reservoir after several hours of operation.

Is foam present in the drained oil?

Check the pump’s suction lines for air leakage if foam is present.

Take oil sample to local supplier for assessment.

Is a complete oil change needed based on supplier's assessment?

Crank limit switches to the lowest position

Put machine in JOG and press DOWN button until cylinders bottom out

Enter the pressure reading in PSI

Turn machine to RUN to re-adjust limit switches

Examine cap screws for looseness

Repair or replace any loose cap screws or nuts

Was the return line filter changed during the previous year?

Change the return line filter if not done during the previous year

Suction Line Strainer Maintenance

Remove the suction line strainer
