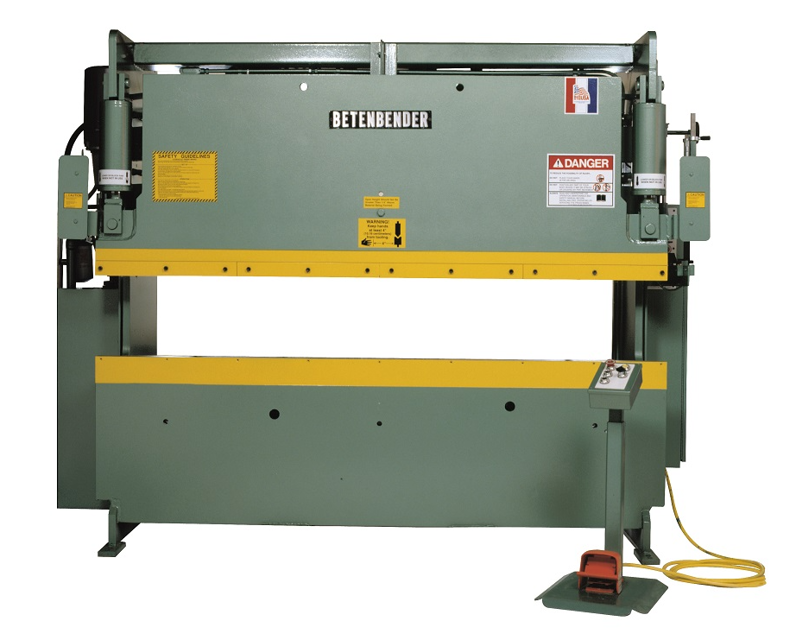

Betenbender Manufacturing Press Brake Machine 6'-50T

Grease the two zerks on each end of the gibs at 8 hours of running time intervals.

One-Shot Lubrication (Optional)

Manually pump grease into the machine using the grease pump attached to the lube station for normal usage.

Operate the one-shot grease pump every 8 hours of running time for extended usage.

Automatic Lubrication (Optional)

Ensure the auto lube provides grease to all points on the gibs upon initial start-up of the Press Brake for normal usage.

Set the timer on the machine to control greasing intervals after initial start-up for extended usage.

Crank limit switches to the lowest position

Put machine in JOG and press DOWN button until cylinders bottom out

Enter the pressure reading in PSI

Turn machine to RUN to re-adjust limit switches

Check cap screws for looseness and secure them

Check nuts for looseness and secure them

Describe any repairs or replacements made to fasteners

Was the return line filter changed during the previous year?

Change the return line filter if not done during the previous year

Suction Line Strainer Maintenance

Remove the suction line strainer

Flush the tank thoroughly to remove old oil

Remove and flush the suction line strainer (Does not pertain to 50-70T)

Install a new return filter cartridge before adding new oil

Replace return line filter (at least yearly or more frequently with heavy use)

Fill the hydraulic reservoir with 10W ISO 32, non-foaming oil

Inspect all lines and fittings for leaks

Inspect piston rods for leaks or scoring of surface

Inspect manifold block and replace any leaking 'O' rings

Turn off power and lock MAIN DISCONNECT switch

Inspect all connections for any loose connections
