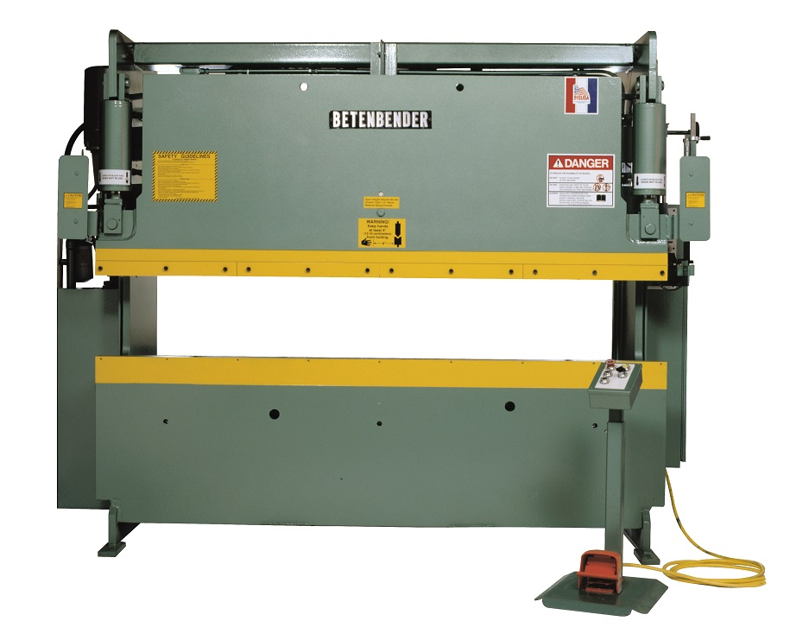

Betenbender Manufacturing Press Brake Machine 6'-120T

Grease the two zerks on each end of the gibs at 8 hours of running time intervals.

One-Shot Lubrication (Optional)

Is the machine under normal usage?

Manually pump grease into the machine using the grease pump attached to the lube station.

Is the machine under extended usage?

Operate the one-shot grease pump every 8 hours of running time.

Automatic Lubrication (Optional)

Is the machine under normal usage?

Initial Inspection and Cleaning

Inspect and clean the following parts for dirt and foreign material

Remove dirt and foreign material manually without using an air hose

Use an acceptable solvent to remove rust proofing compound

Clean the Press Brake with an approved solvent and clean rags

Ensure no air hose or waste cloth is used during cleaning

Crank limit switches to the lowest position

Put machine in JOG and press DOWN button until cylinders bottom out

Enter the pressure reading in PSI

Turn machine to RUN to re-adjust limit switches

Observe all operational parts for proper performance

Check electrical foot switch before use

Remove foot switch from operating area when not in use

Flush the tank thoroughly to remove old oil

Remove and flush the suction line strainer (Does not pertain to 50-70T)

Install a new return filter cartridge before adding new oil

Has the return line filter been replaced within the last year?

Fill the hydraulic reservoir with 10W ISO 32, non-foaming oil
