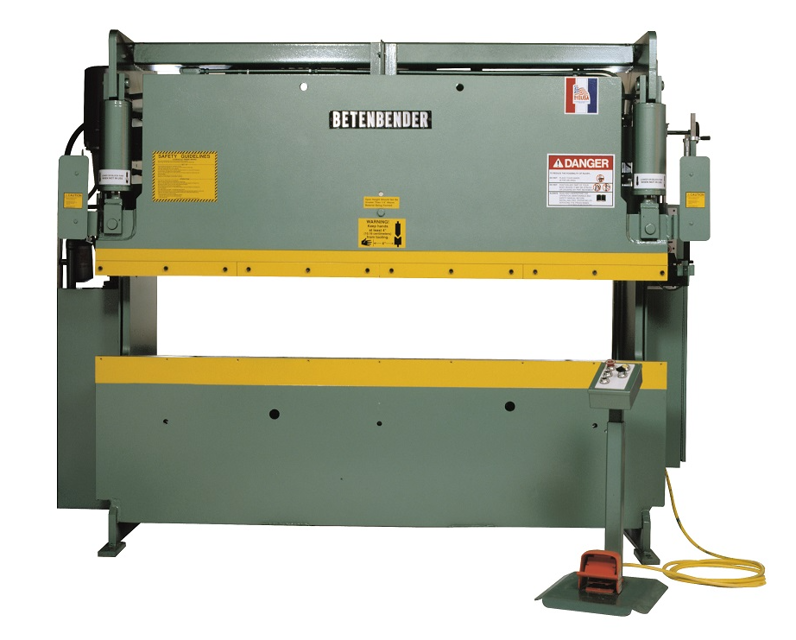

Betenbender Manufacturing Press Brake Machine 10'-120T

Examine cap screws for looseness

Repair or replace loose cap screws and nuts

Filter and Strainer Maintenance

Was the return line filter changed during the previous year?

Change return line filter if not done during previous year

Flush clean the suction line strainer

Grease the two zerks on each end of the gibs at 8 hours of running time intervals.

One-Shot Lubrication (Optional)

Is the machine under normal usage?

Manually pump grease into the machine using the grease pump attached to the lube station.

Is the machine under extended usage?

Operate the one-shot grease pump every 8 hours of running time.

Automatic Lubrication (Optional)

Is the machine being initially turned on?

Inspect all lines and fittings for leaks

Inspect piston rods for leaks or scoring of surface

Inspect manifold block and replace any leaking 'O' rings

Turn off power and lock MAIN DISCONNECT switch

Inspect all connections for any loose connections

Initial Inspection and Cleaning

Inspect and clean the following parts for dirt and foreign material

Remove rust proofing compound with an acceptable solvent

Use safety glasses and gloves during cleaning

Clean the Press Brake with an approved solvent and clean rags

Ensure no air hose is used for cleaning

Ensure no waste cloth is used for cleaning

Observe all operational parts for proper performance

Is the oil visible in the sight glass?

Check electrical foot switch before use

Remove foot switch from operating area when not in use
