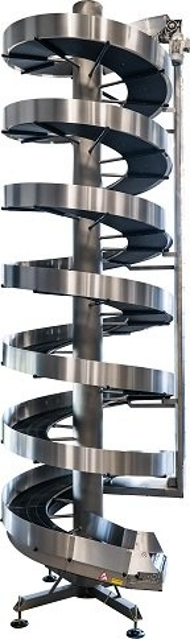

Ambaflex Spiral Conveyor SPIRALVEYOR SV800

Check the conveyor belt for issues

Were any conveyor plates replaced?

Check the transition and reversing rollers for issues

Contact the supplier if issues with O-belts regularly occur

Ensure the main switch is turned off to remove tension from the Spiralveyor.

Lay the tape measure on the conveyor belt and select a fixed point for measurement.

Measure the movement of conveyor plates over half a metre in millimetres.

Is the movement more than 38.5 mm?

Remove a link from the chain if movement exceeds 38.5 mm.

Have more than two links been removed at the same time?

Check for potential causes of skid

Are the HF conveyor plates worn?

Replace worn HF conveyor plates with new ones if necessary

Are products being transported as per the technical specification?

Contact the supplier of the Spiralveyor if skid cannot be remedied

Ensure the main switch is turned off to remove tension from the Spiralveyor.

Push the slat from each other so the chain is completely stretched at the upper or lower end of the Spiralveyor.

Measure the distance between the start of slat 1 and the start of slat 11.

Is the measured distance more than 387 mm [15.23"]?

Has the chain been shortened by 1.5% of the total length?

Contact AmbaFlex service for chain replacement if necessary.

Find the conveyor plate with a coloured dot and stop it at the lower end of the Spiralveyor

Ensure the main switch of the Spiralveyor is off to remove tension from the machine

Remove the conveyor plate with the coloured dot

Remove the locking link under the conveyor plate to release the chain wheel

Dismount the motor from the shaft by loosening the bolts

Loosen the bearing blocks and remove guide belts from wheels
