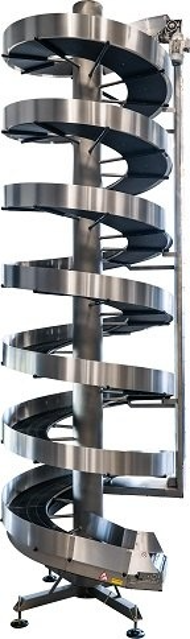

Ambaflex Spiral Conveyor SPIRALVEYOR SV400

Disconnect the main power and activate the working switch to ensure no tension on the drive.

Move the slatbelt to the service location by manually turning it.

Remove the slat by pulling back on both tips while keeping thumbs pressed on the centre.

Place new slats on the metal chain ensuring correct alignment with connecting links.

Apply force on the middle of the slat to click it onto the chain, using a rubber hammer if necessary.

Ensure the main switch is turned off to remove tension from the Spiralveyor.

Push the slats apart to fully stretch the chain at the upper or lower end of the Spiralveyor.

Measure the distance between the start of slat 1 and the start of slat 11.

Is the measured distance more than 387 mm [15.23"]?

Has the chain been shortened by 1.5% of the total length?

Contact AmbaFlex service for chain replacement if necessary.

Find the conveyor plate with a coloured dot

Stop the conveyor plate at the lower end of the Spiralveyor

Ensure the main switch of the Spiralveyor is off

Remove the conveyor plate with the coloured dot

Remove the locking link under the conveyor plate

Dismount the motor from the shaft by loosening the bolt in the shaft hole

Check the gear for worn teeth and alignment

Replace or align gear if necessary

Check the side guide for dents, damages, and connection

Do side guide damages affect product transport?

Move the conveyor plate with the coloured dot to the chain wheel at the lower end.

Release the chain wheel by uncoupling the chain of the conveyor belt at the conveyor plate with the coloured dot.

Switch off the main switch of the Spiralveyor to prevent the machine from starting up.

Is a transition roller mounted?

Dismount the transition roller if present.

Dismount (drive) shaft by first dismounting the motor reductor if present.
