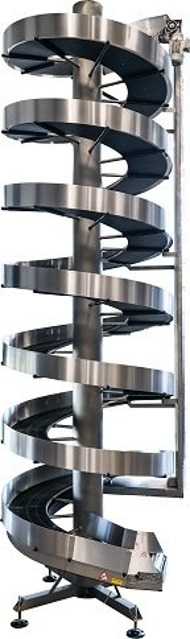

Ambaflex Spiral Conveyor SPIRALVEYOR SV200

Ensure the main switch is turned off to remove tension from the Spiralveyor.

Lay the tape measure on the conveyor belt and select a fixed point for measurement.

Measure the movement of conveyor plates over half a metre in millimetres.

Is the movement more than 38.5 mm?

If more than 38.5 mm, remove a link from the chain. If more than two links need removal, contact the supplier.

Move the conveyor plate with the coloured dot to the chain wheel at the lower end.

Release the chain wheel by uncoupling the chain of the conveyor belt at the conveyor plate with the coloured dot.

Switch off the main switch of the Spiralveyor to prevent the machine from starting up.

Is a transition roller mounted?

Dismount the transition roller if present.

Dismount the (drive) shaft by first dismounting the motor reductor if present.

Check the gear for worn teeth and alignment

Replace or align gear if necessary

Check the side guide for dents, damages, and connection

Do side guide damages affect product transport?

Check the conveyor belt for issues

Were any conveyor plates replaced?

Check the transition and reversing rollers for issues

Contact the supplier if issues regularly occur

Disconnect the main power and activate the working switch to ensure no tension on the drive.

Move the slatbelt to the service location by manually turning it.

Remove the slat by pulling back on both tips while keeping thumbs pressed on the centre.

Repeat the removal process for additional slats if necessary, using the crank to move the slatbelt.

Place new slats on the metal chain, ensuring correct alignment with connecting links and bearing placement.

Apply force on the middle of the slat to click it onto the chain, using a rubber hammer if necessary.
