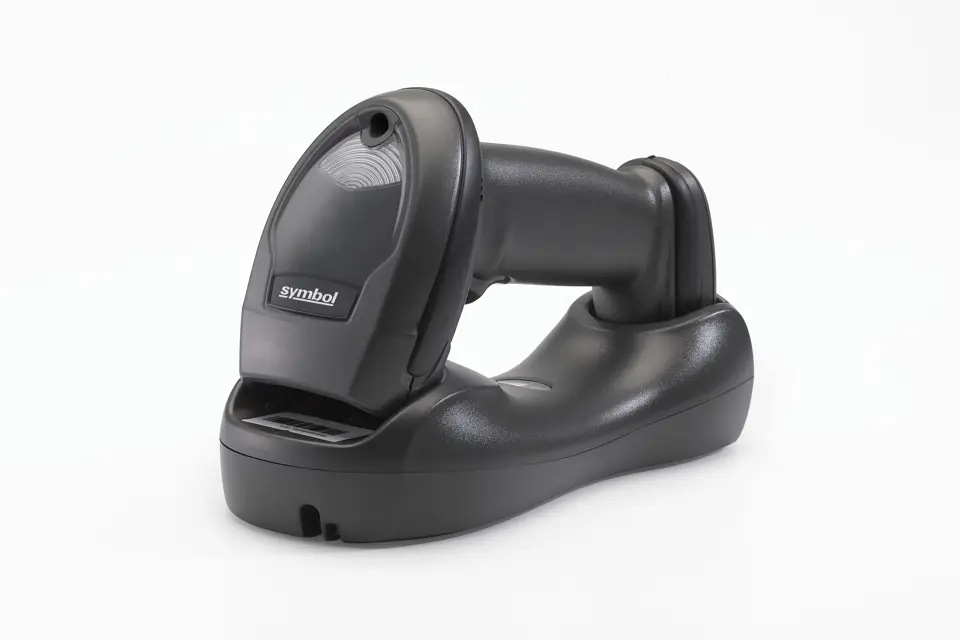

Zebra Scanner LI4278

CAUTION Avoid using cleansers directly on the linear imager scanner battery door and contacts. Use a cotton swab moistened with alcohol to gently clean contacts.

Routinely cleaning the exit window is required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window.

1. Dampen a soft cloth with one of the approved cleaning agents listed above or use pre-moistened wipes.

2. Gently wipe all surfaces, including the front, back, sides, top and bottom. Never apply liquid directly to the scanner. Be careful not to let liquid pool around the scanner window, trigger, cable connector or any other area on the device.

3. Be sure to clean the trigger and in between the trigger and the housing (use a cotton-tipped applicator to reach tight or inaccessible areas).

4. Do not spray water or other cleaning liquids directly into the exit window.

5. Wipe the scanner exit window with a lens tissue or other material suitable for cleaning optical material such as eyeglasses.

6. Immediately dry the scanner window after cleaning with a soft non-abrasive cloth to prevent streaking.

Warning: Do not pour, spray or spill any liquid on the cradle.

See Cleaning the Linear Imager Scanner for instructions about cleaning the cradles.

DC power cable removed from the cradle?

Cotton portion of a cotton-tipped applicator dipped in isopropyl alcohol?

Cotton-tipped applicator rubbed along the pins of the connector?

All sides of the connector rubbed with the cotton-tipped applicator?

Compressed air sprayed in the connector area?

CAUTION: When using compressed air, always wear eye protection; do not point nozzle at yourself or others; make sure the nozzle or tube is pointing away from your face; read warning label on compressed air product.

No lint left by the cotton tipped applicator?
