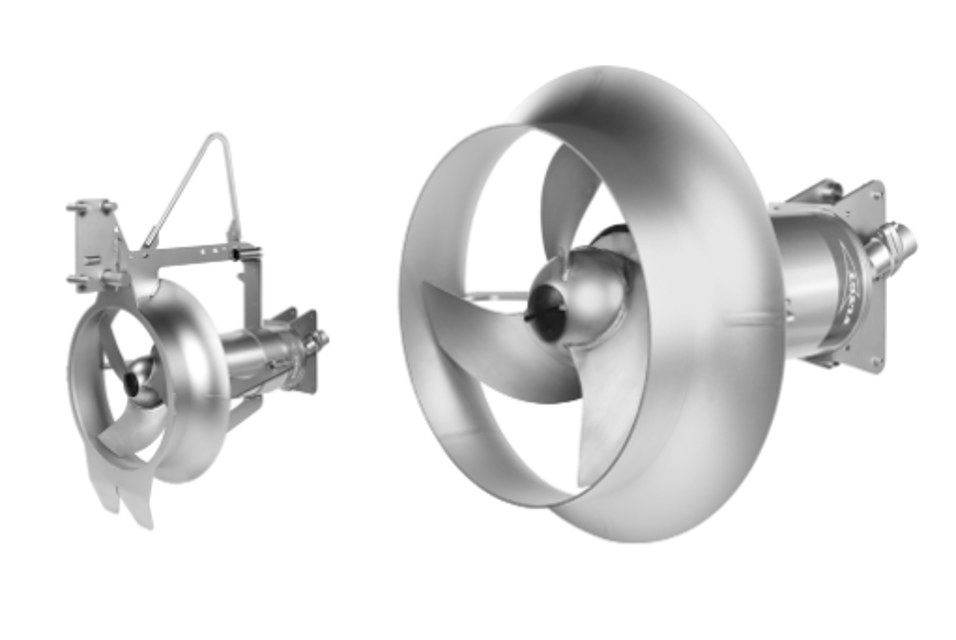

Xylem Heavy-Duty Submersible Mixer SR4660.412

Disconnect and lock out power before servicing

Ensure only certified electricians and Xylem-authorized mechanics perform maintenance on EN/ATEX or FM-approved mixers

Verify the following requirements are met

Conduct a check-up by an authorized Xylem service representative

Document findings and determine intervals for periodical inspection and major overhaul

Ensure the following tools are available

Twist off the propeller plug and the O-ring

Loosen the hub screw using an M12 hexagon bit adapter (part no 84 14 79), n=10

Remove the shaft key, handling it by its ends

Disconnect and lock out power before servicing

Inspection and Replacement Tasks

Is the media (liquid) temperature below 40°C (104°F)?

Ensure all replaced components are properly installed

Check the stator housing for any leakage, and drain if necessary.

Check mechanical seals and O-rings and replace any damaged seals with new ones.

CLS (not for Ex-approved mixers)

Check the oil housing for any leakage.

Check mechanical seals and O-rings and replace any damaged seals with new ones.

Check the coolant level (mixer with cooling jacket).

Check the connections and the electrical motor.

Disconnect and lock out power before servicing

Is the mixer EN/ATEX or FM-approved?

If EN/ATEX or FM-approved, ensure only certified electricians and Xylem-authorized mechanics perform maintenance

Check that the following requirements are met

Perform general inspection of the mixer

Control and replace wear parts as necessary
