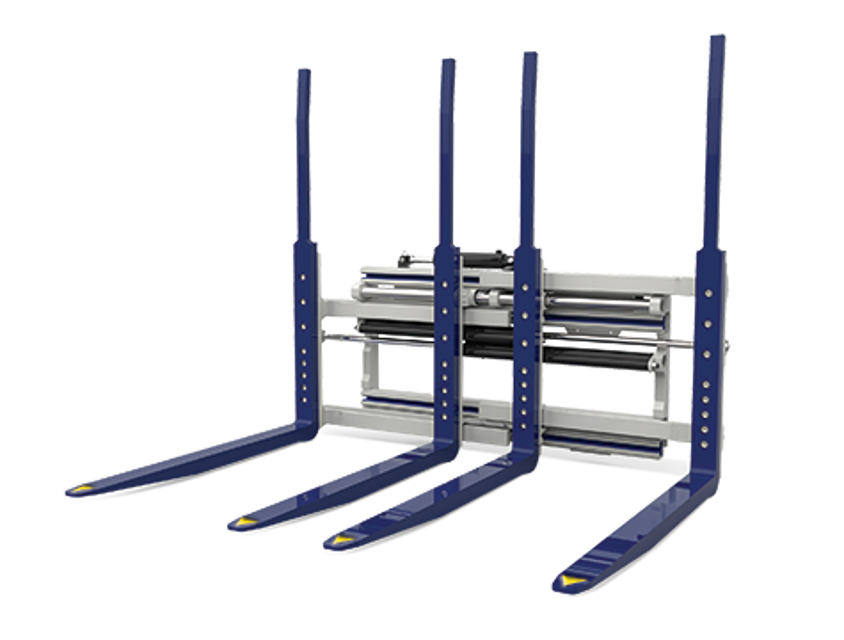

Cascade Single Double Pallet Handler 36G-FDS-B005

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation.

1000-Hour Maintenance Procedures

Tighten the inner and outer fork capscrews to 220 ft.-lbs. (300 Nm).

Tighten the frame capscrews to 75 ft.-lbs. (100 Nm).

Test the attachment empty through five complete cycles.

Test the attachment with a load through five complete cycles.

WARNING: Test the attachment after maintenance

Test the attachment through five complete cycles, first empty, then with a load

IMPORTANT: Lubrication Information

Ensure attachment is prelubed at the factory

Is additional lubrication required?

If lubrication is required, select the type used

500-Hour Maintenance Procedures

Fork Bearing Inspection and Lubrication

Inspect the inner and outer fork bearing surfaces for wear or damage

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles. First test the attachment empty, then test with a load to make sure the attachment operates correctly before returning it to the job.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation. If required, silicone spray or light grease is recommended.

Check for loose or missing components

Inspect the cylinder rod anchors for damage

Check for equal movement of the inner and outer forks
