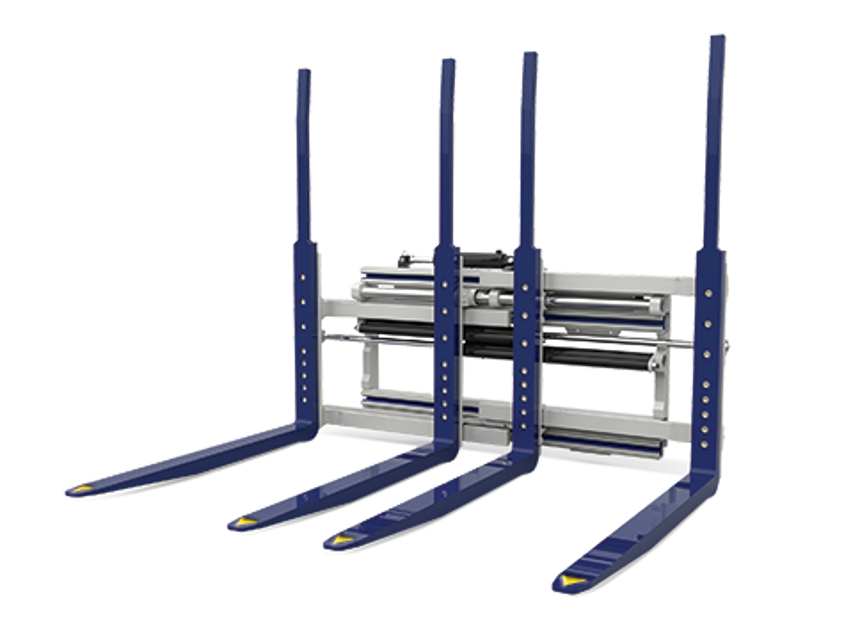

Cascade Single Double Pallet Handler 60G-FDS-4A-0010

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation.

1000-Hour Maintenance Procedures

Tighten the inner and outer fork capscrews to 220 ft.- lbs. (300 Nm).

Tighten the frame capscrews to 75 ft.-lbs. (100 Nm).

Test the attachment through five complete cycles empty.

Test the attachment through five complete cycles with a load.

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles. First test the attachment empty, then test with a load to make sure the attachment operates correctly before returning it to the job.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation. If required, silicone spray or light grease is recommended.

500-Hour Maintenance Procedures

Inspect the inner and outer fork bearing surfaces for wear or damage.

Lubricate fork bearing surfaces with silicone spray or light grease as required.

Apply chassis grease to the upper bearing grease fittings and lower bearing surfaces.

Check the clearance between the lower mounting hooks and the truck carriage bar.

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles. First test the attachment empty, then test with a load to make sure the attachment operates correctly before returning it to the job.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation. If required, silicone spray or light grease is recommended.

Check for loose or missing components

Inspect the cylinder rod anchors for damage

Check for equal movement of the inner and outer forks
