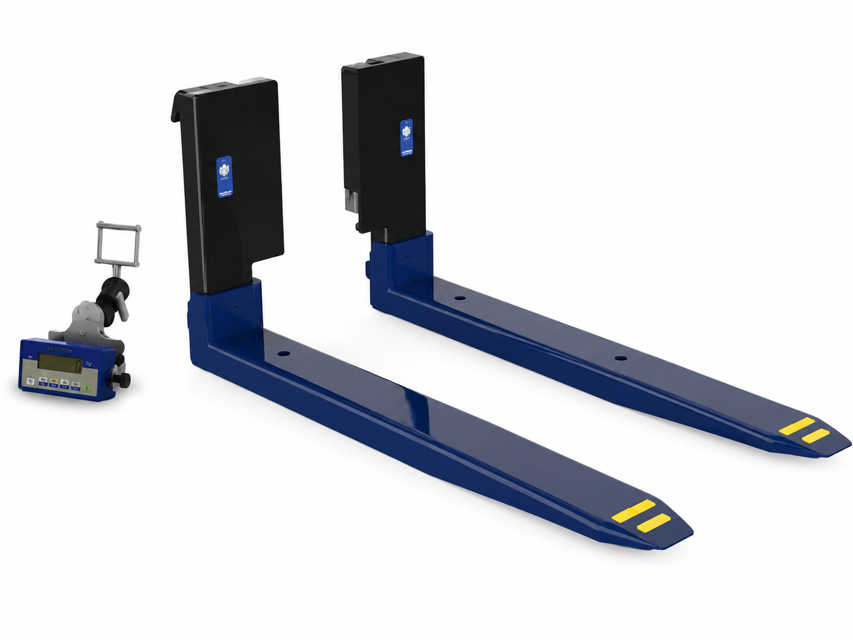

Cascade Weigh Fork 23C

IMPORTANT: Only trained and authorized personnel are allowed to service forks

IMPORTANT: To prevent weighing inaccuracies, the end user is responsible to check accuracy on a regular basis at intervals that best fit their application and requirements. Development of a periodic schedule will prevent faulty readings. Cascade recommends a minimum interval of every 12 months or 2000 hours, whichever comes first.

Tighten fork shoe nut to a torque of 82 ft.-lbs. (111 Nm)

Is it necessary to replace the cover spool, fork shoe capscrews and nuts?

IMPORTANT: Only trained and authorized personnel are allowed to service forks.

IMPORTANT: To prevent weighing inaccuracies, the end user is responsible to check accuracy on a regular basis.

NOTE: Use Go/No-Go Wear Gauge Part No. 209560 (Class II) or 209561 (Class III).

Inspect the fork lower hooks and carriage bar using the gauge. If the gauge fits between the carriage bar and lower hook, repair or replacement is needed.

Inspect the upper carriage bar using the gauge. If the gauge arrow touches the carriage bar, repair or replacement is needed.

Inspect the fork upper hooks using the gauge. If the gauge arrow touches the hook, repair or replacement is needed.

Has the truck been in operation for 2000 hours or 12 months since the last inspection?

Ensure only trained and authorized personnel perform the inspection

Verify that the weighing accuracy is checked regularly by the end user

Remove fork shoe hardware from forks

Tighten fork shoe nut to a torque of 82 ft.-lbs. (111 Nm) upon reassembly

Fork Shank Thickness Measurement

Measure the fork shank thickness with caliper outer teeth approximately 2 in. (50 mm) above top of blade

Inspect the bottom of the forks for debris wedged between the fork and the fork shoe. Remove any debris found.

Check for pinched wires at bottom of battery holders.

Inspect the battery holders for damage and debris when the battery packs are changed. Remove any debris found.

Verify that the capscrews are tight and contact tabs are not damaged or bent.

Tighten contact point capscrews if required.

Verify that only trained and authorized personnel are performing the service

Use a mild cleanser to wipe down the forks with a towel

Rinse the fork with a non-pressurized stream of water

Has the accuracy of the weighing system been checked regularly?

Enter the interval in months for accuracy checks

Enter the interval in hours for accuracy checks
