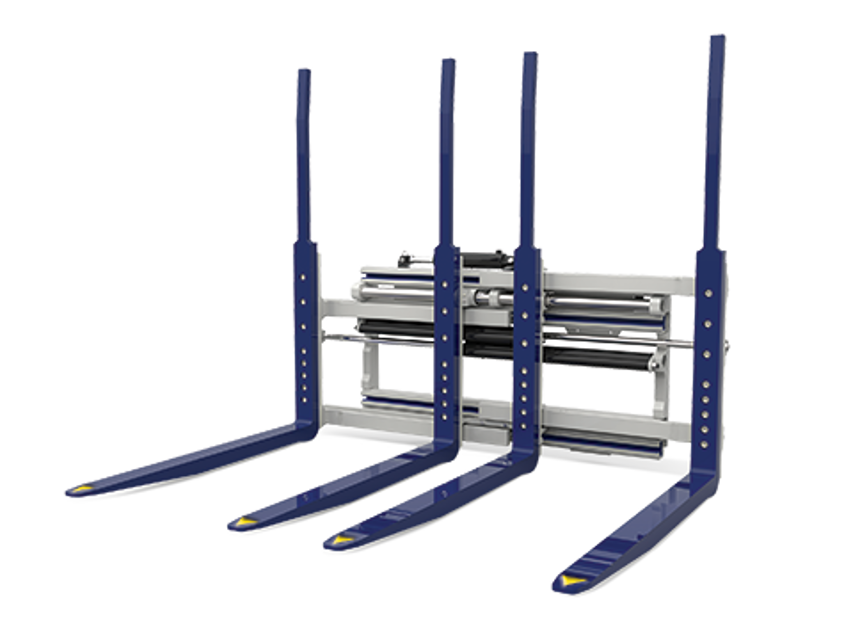

Cascade Single Double Pallet Handler 36G-FDS-B221

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles. First test the attachment empty, then test with a load to make sure the attachment operates correctly before returning it to the job.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation. If required, silicone spray or light grease is recommended.

500-Hour Maintenance Procedures

Inspect and lubricate fork bearing surfaces

Apply chassis grease to the upper bearing grease fittings and lower bearing surfaces

Check and Adjust Hook Clearances

Enter clearance for Quick-Change Hooks (inches)

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles. First test the attachment empty, then test with a load to make sure the attachment operates correctly before returning it to the job.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation. If required, silicone spray or light grease is recommended.

Check for loose or missing bolts, worn or damaged hoses and hydraulic leaks

Inspect the cylinder rod anchors for damage. Anchors operate with a loose clearance and require no lubrication.

Check for equal movement of the inner and outer forks

Test the attachment through five complete cycles empty

WARNING: After completing maintenance procedures, always test the attachment through five complete cycles.

Test the attachment empty through five complete cycles.

Test the attachment with a load through five complete cycles.

IMPORTANT: Attachment is prelubed at the factory and lubrication is not required for installation.

Is additional lubrication required?

If lubrication is required, select the type used.

1000-Hour Maintenance Procedures
