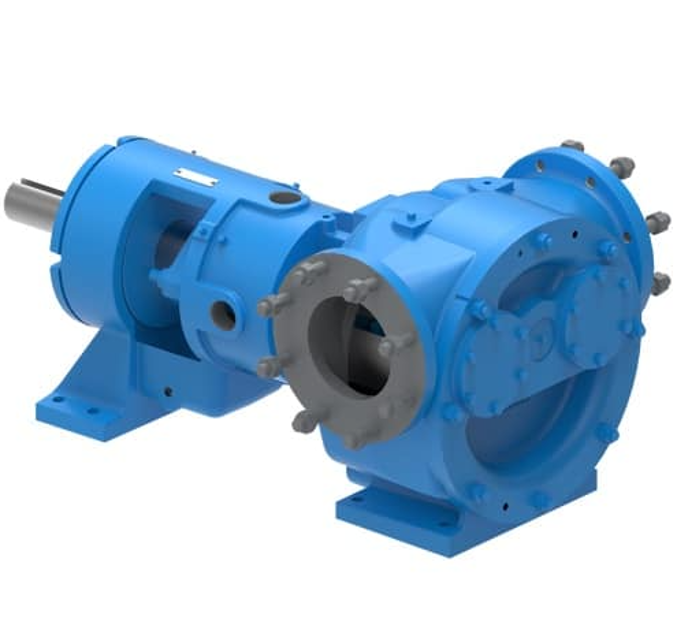

Viking Pump N324A
Viking Pump N324A

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Viking Pump N324A

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Viking Pump N324A

Viking Pump N324A

Create an account to install this asset package.

Maintenance Plans for Viking Pump Model N324A

Integrate maintenance plans directly into your work orders in MaintainX.

Pump Disassembly

Check mark

Safety Precautions

Check mark

Ensure all pressure in the chamber has been vented through appropriate openings or connections.

Check mark

Lock out or make non-operational the driving means (motor, turbine, engine, etc.).

Check mark

Identify the liquid the pump has been handling and understand the necessary safety precautions.

Check mark

Obtain and review the material safety data sheet (MSDS) for the liquid.

Check mark

Disassembly Process

Check mark

Mark head and casing before disassembly to ensure proper reassembly.

Check mark

Remove nuts from head and use jackscrews to back head away from casing.

Check mark

Avoid damaging head gasket and prevent idler from falling from idler pin.

Run this procedureArrow right

Pump Assembly

Check mark

Bracket and Bushing Installation

Check mark

Install bracket bushing with groove at 12:00 o’clock position if applicable.

Check mark

Install bracket and bushing assembly on the casing ensuring proper alignment with locating pin.

Check mark

Rotor and Idler Installation

Check mark

Coat rotor shaft assembly with light oil and insert into bracket bushing.

Check mark

Coat idler pin with light oil and place idler and bushing on idler pin in head.

Check mark

Head and Idler Assembly Installation

Check mark

Install head and idler assembly on pump using a .010 to .015 inch thick head gasket.

Check mark

Ensure idler pin is positioned correctly for proper flow of liquid through pump.

Run this procedureArrow right

Pressure Relief Valve Disassembly

Check mark

Mark valve and head before disassembly to ensure proper reassembly

Check mark

Remove valve cap

Check mark

Measure and record length of extension of adjusting screw

Check mark

Loosen locknut and back out adjusting screw until spring pressure is released

Check mark

Remove bonnet, spring guide, spring and poppet from valve body

Check mark

Clean and inspect all parts for wear or damage

Check mark

Replace parts if necessary

Run this procedureArrow right

Mechanical Seal Replacement

Check mark

Seal Type Identification

Check mark

Identify the type of mechanical seal

Check mark

For other seal types, refer to the Seal Installation Drawing (SID) or contact a Viking representative

Check mark

Seal Replacement Preparation

Check mark

Ensure the pump is turned off and isolated from the power source

Check mark

Drain the pump of any fluids

Check mark

Gather necessary tools and replacement parts

Check mark

Seal Replacement Procedure

Check mark

Remove the old mechanical seal

Run this procedureArrow right

Seal Removal

Check mark

Safety Precautions

Check mark

Ensure all pressure in the chamber has been vented through appropriate openings or connections.

Check mark

Lock out or make non-operational the driving means to prevent accidental start-up.

Check mark

Identify the liquid handled by the pump and understand necessary safety precautions.

Check mark

Obtain and review the material safety data sheet (MSDS) for the liquid.

Check mark

Seal Removal Process

Check mark

Remove any circulation tubing connected to the seal gland.

Check mark

Loosen setscrews on the seal collar to free the cartridge seal from the shaft.

Check mark

Remove the two gland nuts.

Run this procedureArrow right
